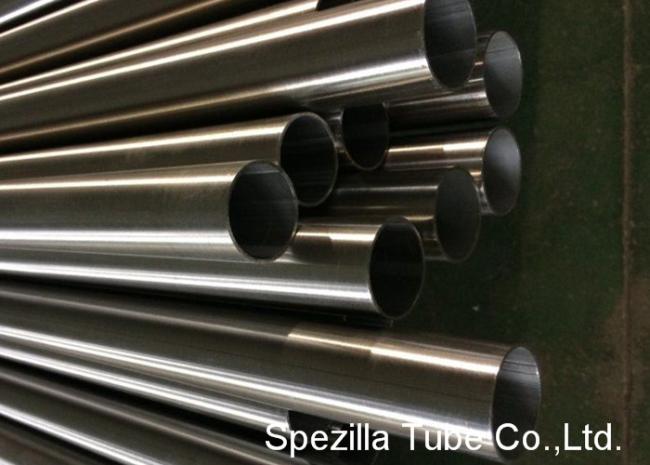

32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316
32mm Automotive polished stainless steel tubing Seamless Polished Round AISI 304 316
SPEZILLA TUBE offer wide range of welded, welded-and-drawn, and seamless stainless steel tube and pipe to meet your unique needs.
In addition to a full range of standard sizes and traditional grades, such as 304 and 316, we also supply a wide variety of custom tube and pipe, including the following alloys:
- Austenitic – 304, 316, 317L, 321, 347, 904L
- Ferritic – 409, 430, 439, 446, 29-4-C
- Martensitic – 440
- Precipitation Hardened – 13-8, 15-5, 17-4, 17-7
- Duplex Alloys – 2003, 2101, 2205, 2507
- Titanium.
- Nickel Alloy
Available Sizes:
Any size can be provided but this process is usually used sizes of NPS 8’’ and upper.
Eletric-Fushion-Welded Austenitic Chromium-Nickel Stainless Steel Pipe For High-Temperature Service and General Applications
This specification cover electric-fusion-welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service, or both, or for general applications. The pipes come in five classes.
Class1:
Pipe is double welded by processes employing filler metal in all passes and are completely radiographed.
Class2:
Pipe is double welded by processes employing filler metal in all passes without radiography
Class3:
Pipe is single welded by processes employing filler metal in all passes and are completely radiographed.
Class4:
Same as Class 3 except that the weld pass exposed to the inside pipe surface may be made without the addition of filler metal.
Class5:
Pipe is double welded by processes employing filler metal in all passes and is spot radiographed.
| MINAL DIAMETER NPS |
OUTSIDE DIAMETER(MM) |
SCH-5S WALL THICKNESS(MM) |
SCH-10S WALL THICKNESS(MM) |
SSCH-40S WALL THICKNESS(MM) |
|---|---|---|---|---|
| 1/4 | 13.72 | 1.65 | 2.24 | |
| 3/8 | 17.15 | 1.65 | 2.31 | |
| 1/2 | 21.34 | 1.65 | 2.11 | 2.77 |
| 3/4 | 26.67 | 1.65 | 2.11 | 2.87 |
| 1 | 33.40 | 1.65 | 2.77 | 3.38 |
| 1 1/4 | 42.16 | 1.65 | 2.77 | 3.56 |
| 1 1/2 | 48.26 | 1.65 | 2.77 | 3.68 |
| 2 | 60.33 | 1.65 | 2.77 | 3.91 |
| 2 1/2 | 73.03 | 2.11 | 3.05 | 5.16 |
| 3 | 88.90 | 2.11 | 3.05 | 5.49 |
| 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 |
| 4 | 114.30 | 2.11 | 3.05 | 6.02 |
| 5 | 141.30 | 2.77 | 3.40 | 6.55 |
| 6 | 168.28 | 2.77 | 3.40 | 7.11 |
| 8 | 219.08 | 2.77 | 3.76 | 8.18 |
| 10 | 273.05 | 3.40 | 4.19 | 9.27 |
| 12 | 323.85 | 3.96 | 4.57 | 9.53 |
| 14 | 355.60 | 3.96 | 4.78 | 9.53 |
| 16 | 406.40 | 4.19 | 4.78 | 9.53 |
| 18 | 457.20 | 4.19 | 4.78 | 9.53 |
| 20 | 508.00 | 4.78 | 5.54 | 9.53 |
| 22 | 558.80 | 4.78 | 5.54 | |
| 24 | 609.60 | 5.54 | 6.35 | 9.53 |
| 30 | 762.00 | 6.35 | 7.92 | |
|
32 | 80 |
812.8 | 2032.0 |
(Thickness):6.35~30mm
Nominal diameter and wall thickness subject to the approval of vendor and purchaser |
||
