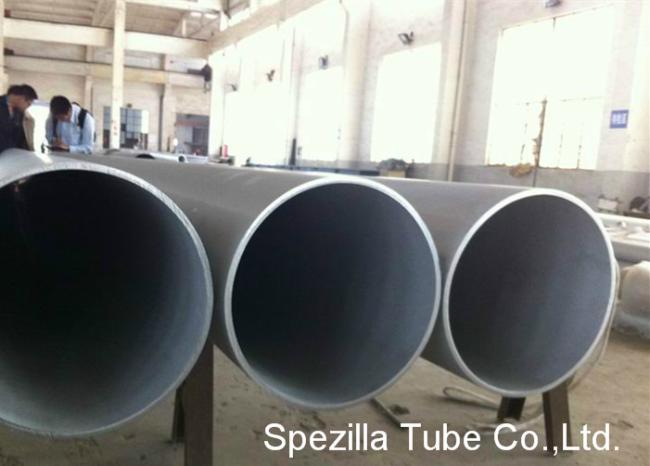

UNS S31009 Stainless Steel Round Pipe,metric stainless steel tubing ANSI B36.19 TP 310H ERW
UNS S31009 Stainless Steel Round Pipe,metric stainless steel tubing ANSI B36.19 TP 310H ERW
SS 310H Welded Pipe, Stainless Steel 310H UNS S31009 Seamless Pipes & Tubes, SS 310H ERW Pipes Supplier
Stainless Steel 310H Pipes & Tubes, Stainless Steel 310H Welded Tubes, Stainless Steel 310H EFW Pipes Exporter.
SPEZILLA is one of leading manufacturers of high quality Stainless Steel 310H Pipes and Tubes which find application across diverse sectors. We offer qualitative SS 304H Pipes and Tubes in different sizes and shapes that are being designed as per the national and international standard quality of raw materials. Alloy 310H has a carbon content restricted to exclude the lower end of Alloy 310 range, so is the grade of choice for high temperature applications. The high chromium content of UNS S31009 Pipes intends to increase high temperature properties and gives good aqueous corrosion resistance. Like other austenitic grades, these Stainless Steel 310H Seamless Pipes have excellent toughness, even down to cryogenic temperatures, although other grades are normally used in sub-zero environments. Our SS 310H Welded Tubes can be offered in customized length sizes and shapes, and are available at market leading prices.
| andards | ASTM A312 / 213/ 269 DIN17457 EN10216 |
| Specification | OD:6mm-1219mm,WT:0.5-30mm, Length: Max. 20meters |
| Material | TP304, TP304H,TP304L,TP310/S, TP316L, TP317L,TP321/321H,TP347,S31803,2205,2507,ect |
| Process method | Cold Drawn/Welded |
| Surface finish | Solution Annealed & Pickled |
| Applications | For fluid and gas transport, |
| Packing | Seaworthy Wooden Cases/ In Bundle |
| Marking | All tubes are marked as follows: SPEZILLA. Standard, Grade, OD, Thickness, Length, Heat No. (Or according to th |
| Specifications | ASTM A/ASME SA213/A249/A269/A312/A358 CL |
| Dimensions | ASTM, ASME and API |
| Schedule | SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS |
| Wall Thickness | Schedule 5S - Schedule XXS. |
| Size - Seamless 310H Pipes & Tubes | 1/2" NB - 24" NB |
| ERW 310H Pipes & Tubes | 1/2" NB - 24" NB |
| EFW 310H Pipes & Tubes | 6" NB - 100" NB |
| Length | Single Random, Double Random & Cut Length. |
| Types | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
Mechanical properties of stainless steel 310H grade
Chemical Composition ranges for stainless steel 310H grade
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | - | - | - | - | 24 | - | 19 | - |
| max. | 0.1 | 2 | 1 | 0.045 | 0.03 | 26 | 21 | |||
