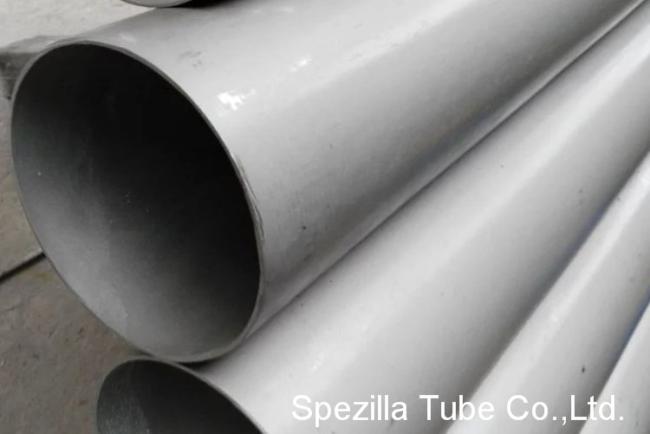

28mm Od Austenitic Automotive 316 stainless steel pipe ASTM Standard TIG Welding
28mm Od Austenitic Automotive 316 stainless steel pipe ASTM Standard TIG Welding
SS 317 Welded Pipe, Stainless Steel 317 UNS S31700 Seamless Pipes & Tubes, SS 317 ERW Pipes Supplier
Stainless Steel 317 werkstoff nr. 1.4449 Pipes & Tubes, Stainless Steel 317 Welded Tubes, Stainless Steel 317 EFW Pipes Exporter.
SPEZILLA is one of leading manufacturers of high quality Stainless Steel 317 Pipes and Tubes which find application across diverse sectors. We offer qualitative SS 317 Pipes and Tubes in different sizes and shapes that are being designed as per the national and international standard quality of raw materials. Grade 317 stainless steel is a modified version of SS 316. Also known as UNS S31700, these pipes and tubes has high strength and corrosion resistance. Alloy 317 is tougher than Alloy 304, and is thus quite recommended to use chip breakers. Hardenability of this alloy with WNR 1.4449 will be reduced if constant feeds and low speeds are used. Our SS 317 Seamless Pipe can be offered in customized length sizes and shapes, and are available at market leading prices. These Stainless Steel 317 Welded Tubes can also be fabricated and machined to meet up the piping needs of our clients.
- Specifications: ASTM A554, A269, T304, non-polished finish
- Applications: frame work, braces, supports, marine, food, etc.
- Workability: Easy to Weld, Moderate Cutting, Forming and Machining.
- Mechanical Properties:Brinell = 170, Tensile = 85,000 +/-,
Yield = 34,000 +/-, Nonmagnetic - How is it Measured?OD(A) X Wall (B) X ID (C) X Length
- Available Stock Sizes: 2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Cut to Size
| Specifications | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
| Dimensions | ASTM, ASME and API |
| Specialized in | Large Diameter Size |
| 317 Pipes & Tubes | 1/2" NB - 8" NB |
| ERW 317 Pipes & Tubes | 1/2" NB - 24" NB |
| EFW 317 Pipes & Tubes | 6" NB - 100" NB |
| Tubing Size | 1/8″NB TO 30″NB IN |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random & Cut Length. |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| End | Plain End, Beveled End, Treaded |
Mechanical properties of stainless steel 317 grade
| Density | 8.0 g/cm3 |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Melting Point | 1454 °C (2650 °F) |
| Elongation | 35% |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
Chemical Composition ranges for stainless steel 317 grade
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 317 | 0.08 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 14 | - |
