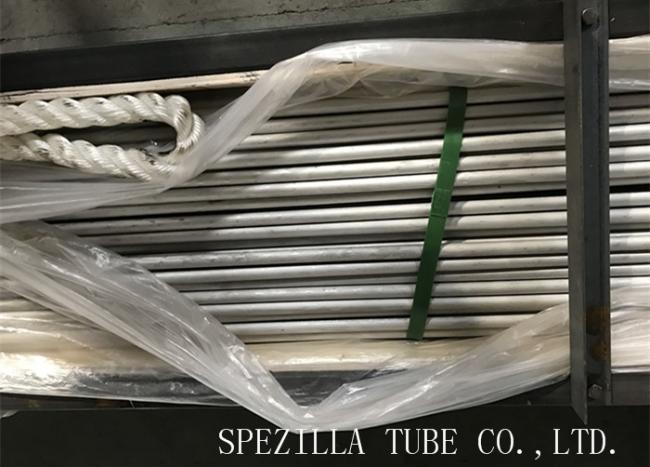

2 Inch polished stainless steel tubing ,Food Grade Stainless Tubing Bead Removed
2 Inch polished stainless steel tubing ,Food Grade Stainless Tubing Bead Removed
SS304 Stainless Steel Round Tube
The most widely used of the stainless and heat resisting steels, 304 offers good corrosion resistance to many chemical corrodents as well as industrial atmospheres. Stainless steel round tube has excellent high and cold temperature working properties.
SS304 Stainless Steel Round Tube is commonly used for fabrication and tooling applications. 304/304L dual certified.
Stainless steel round tube 304 is used in numerous types of industrial applications, including:
- Marine equipment
- Handrails
- Structural applications
- Grab bars
- Medical equipment
- Table framing
Applications:
- Food preparation equipment, especially in chloride environments
- Chemical processing, equipment
- Laboratory benches and equipment
- Rubber, plastics, pulp & paper machinery
- Pollution control equipment
- Boat fittings, value and pump trim
- Heat exchangers
- Pharmaceutical and textile industries
- Condensers, evaporators and tanks
Standards:
- ASTM/ASME: UNS S31600 / S31603
- EURONORM: X1 CrNiMo 17 12 2 / X3 CrNiMo 17 12 2
- AFNOR: Z 6 CND 17-11 / Z 2 CND 17-12
- DIN: 1.4401 / 1.4404
| Specifications | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
| Dimensions | ASTM, ASME and API |
| Specialized in | Large Diameter Size |
| 317 Pipes & Tubes | 1/2" NB - 8" NB |
| ERW 317 Pipes & Tubes | 1/2" NB - 24" NB |
| EFW 317 Pipes & Tubes | 6" NB - 100" NB |
| Tubing Size | 1/8″NB TO 30″NB IN |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random & Cut Length. |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| End | Plain End, Beveled End, Treaded |
| MINAL DIAMETER NPS |
OUTSIDE DIAMETER(MM) |
SCH-5S WALL THICKNESS(MM) |
SCH-10S WALL THICKNESS(MM) |
SSCH-40S WALL THICKNESS(MM) |
|---|---|---|---|---|
| 1/4 | 13.72 | 1.65 | 2.24 | |
| 3/8 | 17.15 | 1.65 | 2.31 | |
| 1/2 | 21.34 | 1.65 | 2.11 | 2.77 |
| 3/4 | 26.67 | 1.65 | 2.11 | 2.87 |
| 1 | 33.40 | 1.65 | 2.77 | 3.38 |
| 1 1/4 | 42.16 | 1.65 | 2.77 | 3.56 |
| 1 1/2 | 48.26 | 1.65 | 2.77 | 3.68 |
| 2 | 60.3 | 1.65 | 2.77 | 3.91 |
| 2 1/2 | 73.03 | 2.11 | 3.05 | 5.16 |
| 3 | 88.90 | 2.11 | 3.05 | 5.49 |
| 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 |
| 4 | 114.30 | 2.11 | 3.05 | 6.02 |
| 5 | 141.30 | 2.77 | 3.40 | 6.55 |
| 6 | 168.28 | 2.77 | 3.40 | 7.11 |
| 8 | 219.08 | 2.77 | 3.76 | 8.18 |
| 10 | 273.05 | 3.40 | 4.19 | 9.27 |
| 12 | 323.85 | 3.96 | 4.57 | 9.53 |
| 14 | 355.60 | 3.96 | 4.78 | 9.53 |
| 16 | 406.40 | 4.19 | 4.78 | 9.53 |
| 18 | 457.20 | 4.19 | 4.78 | 9.53 |
| 20 | 508.00 | 4.78 | 5.54 | 9.53 |
| 22 | 558.80 | 4.78 | 5.54 | |
| 24 | 609.60 | 5.54 | 6.35 | 9.53 |
| 30 | 762.00 | 6.35 | 7.92 | |
|
32 | 80 |
812.8 | 2032.0 |
(Thickness):6.35~30mm
Nominal diameter and wall thickness subject to the approval of vendor and purchaser |
||
