20FT Round Bright Annealed sanitary stainless tubing 3A Certified For Chemical Industry

Price Negotiable
Price: negotiable
MOQ: 1PC
Delivery Time: 5-8 WORKING DAYS
Brand: SPEZILLA
Product Description

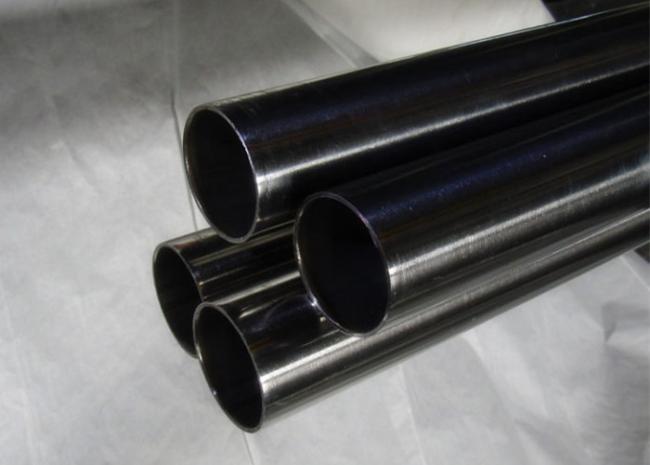

20FT Round Bright Annealed sanitary stainless tubing 3A Certified For Chemical Industry

Quality Assurance:



We are one of the leading suppliers for tubes in the Food & Beverages industry. Our tubes are backed with years of our experience working with the beverages & breweries. We understand the requirement of the F&B industry better. The quality of the inner surface finish of the tube is very critical, when it comes to the transfer of aerated drinks, Fruit juices, Beer, wine etc. Be it the process lines, CIP / SIP lines, we have the right tubes that fit. Our in-house and proprietary process of electropolishing ensures a very high internal surface finish of the highest quality (Ra <0.38 μm).



Applications:


Our stainless steel sanitary tubings are applicable to a wide range of manufacturing industries:


1. Food & Beverage


2. Dairy


3. Wine & Brewery


4. Cosmetic



Mechanical Tests



To ensure the highest surface quality in all of our sanitary tubing, Spezilla goes beyond the requirements of ASTM A269 and A270 by performing the full battery of ASTM bend and deformation tests required by ASME SA249 . The tests, combined with specific raw material requirements, Eddy Current testing at the tube mill, 100% boroscoping prior to mechanical polish, and tighter OD and wall tolerances, allow to provide a more consistent, superior quality product.

Dimensions

OD 1.50"
Wall 0.065"
ID 1.37"

Mechanical Properties

Ultimate Tensile Strength 73,200 psi
Yield Strength 31,200 psi
Elongation 70%
Rockwell Hardness B70

T304L Sanitary Tube Technical Specifications

ASTM A270/S2

T304L Sanitary Tube Chemistry

Carbon (C) 0.035
Chromium (Cr) 18.02-20.0
Manganese (Mn) 2.00 max
Nickel (Ni) 8.0-13.0
Phosphorus (P) 0.04 Max
Sulphur (S) 0.030 Max
Silicon (Si) 0.75



Size Ranges:



O.D. Wall Thickness Stock Lengths
1/2 .065 20 ft.
3/4 .065 20 ft.
1 .049 20 ft.
1 .065 20 ft.
1 1/2 .049 20 ft.
1 1/2 .065 20 ft.
2 .049 20 ft.
2 .065 20 ft.
2 1/2 .065 20 ft.
3 .065 20 ft.
4 .065 20 ft.
4 .083 20 ft.
6 .083 20 ft.
6 .109 20 ft.
8 .109 20 ft.
10 .134 20 ft.
12 .134 20 ft.
14 .134 20 ft.





Chemical Compositions:


Elements 304 (wt%)
C / Max. 0.08
Mn / Max 2.00
P / Max 0.045
S / Max 0.030
Si / Max 1.00
Ni  8.00 - 11.00
Cr 18.00 - 20.00
Mo N/A
Fe Bal.
Cu N/A
N N/A



Mechanical Properties:



Grade

Tensile Strength
(Mpa)

Yield Strength
 (Mpa)

Elongation
(%)

Hardness
(HRB)



 304





≥515



≥205



≥35



≤90
