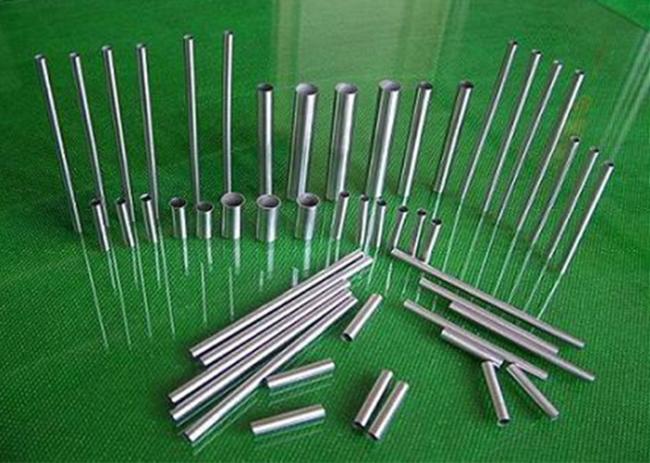

Cold Drawn High Precision Stainless Steel Tubing ASTM/AISI GB JIS DIN 0.3mm-8mm
Cold Drawn High Precision Stainless Steel Tubing ASTM/AISI GB JIS DIN 0.3mm-8mm
Precision stainless steel tubing, also known as stainless steel precision tube, also known as precision tube. In the process of making precision stainless steel tubing in terms of the smoothness of the appearance or in the wall thickness, diameter tolerance range, are more accurate than the average stainless steel tube to a lot. According to the most basic standards, precision stainless steel tubing can basically achieve the accuracy of ± 0.05mm- ± 0.15mm. Here the scope of the tolerance I also briefly explain. General caliber is relatively small, thin wall thickness of the tube tolerance are basically in the ± 0.05mm. And relatively large diameter stainless steel pipe tolerance range is basically ± 0.05mm- ± 0.15mm.
Quick Detail:
precision rolled stainless steel precision pipe tube
Type: stainless steel pipe,seamless stainless steel tube, welded stainless steel pipe
Production Technology: cold rolled,precision rolled,cold drawn.
Cold Drawn Precision Stainless Steel Tubing Seamless Pipe ASTM/AISI , GB, JIS, DIN
Advantage:
• Advanced production and inspection equipment
• Top quality control system and service system
• Professional & Sincerity
• Competitive Price
• Good Reputation
• Timely Delivery
1. Products Specification
|
Commodity |
precision rolled stainless steel precision pipe tube |
|
Standard |
ASTM/AISI ,GB,JIS,DIN,EN,etc |
|
Material Grade |
TP304/304L, TP321/TP321H |
|
SUS304/304l, SUS316/316L, 304lL, 316L, 321, 316Ti,etc |
|
|
Outer Diameter |
6mm or as your request |
|
Thickness |
1mm or as your request |
|
Length |
<8m or as customers' request |
|
Tolerance |
According to the Standard |
|
Surface |
180G, 320G, 400G Satin / Hairline |
|
400G, 500G, 600G or 800G Mirror finish |
|
|
Application |
Petrochemical industry, chemical fertilizer industry, oil refining industry, oil and gas industry, light industry and food industry, pulp and paper industry, energy and environmental industries. |
|
Test |
UT,ET,HT RT, squash test, water pressure test, etc and others according to the standard |
|
Package |
Standard sea-worthy package or as buyers' requirement |
|
MOQ |
2 Metric Ton |
|
Price term |
FOB Shanghai or Ningbo |
2. Chemical Element Analysis
|
Type |
Chemical Composition(%) |
|||||||||
|
ASTM |
C |
Cr |
Ni |
Mn |
P |
S |
Mo |
Si |
Cu |
N |
|
TP304 |
≤0.08 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP304L |
≤0.035 |
18.0-20.0 |
8.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP304H |
0.04-0.10 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP310S |
≤0.08 |
24.0-26.0 |
19.0-22.0 |
≤2.00 |
≤0.045 |
≤0.030 |
≤0.75 |
≤1.00 |
- - - |
- - - |
|
TP316 |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
|
TP316L |
≤0.035 |
16.0-18.0 |
10.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
|
TP316N |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
0.10-0.16 |
|
TP317L |
≤0.035 |
18.0-20.0 |
11.0-15.0 |
≤2.00 |
≤0.045 |
≤0.030 |
3.0-4.0 |
≤1.00 |
- - - |
- - - |
|
TP321 |
≤0.08 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
≤0.10 |
|
TP321H |
0.04-0.10 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP347 |
≤0.08 |
17.0-19.0 |
9.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
3. About Samples
- We can provide samples production and delivery service.
- for present sample usually 3 to 5 days.
- the samples can be sent to your hand.
- As for any information about the sample or any specific requirements of the sample, please contact us via telephone, mail or online trade manager.
4. Payment terms
- we accept T/T, L/C.
- payment terms: 30% to 50% deposit, the balance before shipment or copy of BL.
5. Delivery
- Delivery time: 30days-40days after receiving the deposit
- Way: by sea, DHL, FEDEX, UPS, TNT,etc.
