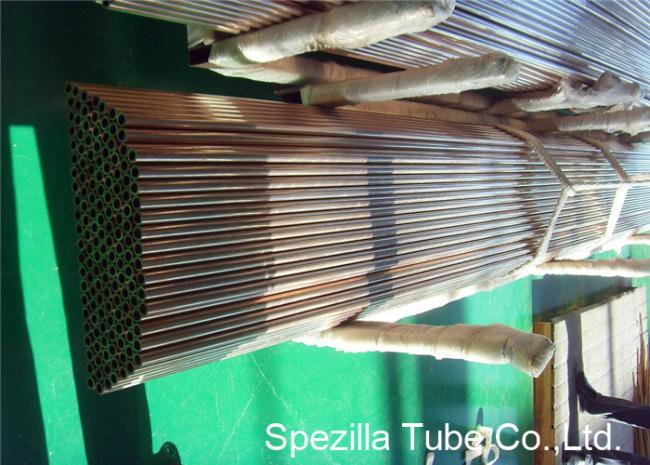

UNS C71500 Copper Nickel Tube O61 Straight Tube Heat Exchanger Fully Annealed Seamless Alloy Pipe
UNS C71500 Copper Nickel Tube O61 Straight Tube Heat Exchanger Fully Annealed Seamless Alloy Pipe
Copper Nickel C71500 Details:
Copper Nickel C71500 (CuNi30MnFe1) is a copper nickel alloy with limited additions of manganese and iron to increase the strength. Copper Nickel 70/30 is also insensitive to stress corrosion.
Although this alloy was already known by the Chinese in the 9th Century, it did not become popular until the 1920’s when it was developed for naval applications in seawater condenser systems.
The addition of iron helps grain refining and increases the erosion resistance with flowing seawater.
It retains its strength well at moderately elevated temperatures, has good cold and hot working properties and is easily weldable.
The alloy is now used in a wide spectrum of applications, ranging from piping for seawater, cladding for offshore platforms and underwater cages for fish farming.
Being high in copper Copper Nickel 70/30 has anti-bio-fouling properties in seawater, and more recently, has been proven to have anti-microbial applications in hospital environments to combat the spread viral bacteria.
| Cu-Ni Tube Standards | ASTM B111,ASME SB111 |
| Cu-Ni Tube Type | Seamless Copper Nickel Tube |
| Cu-Ni Material | Cu-Ni 90/10, Cu-Ni 70/30,C70600,C71500,C70400,C68700 |
| Tube Dimensions | OD"5-330 mm WT: 0.4-10 mm Length Range: < 15000 mm |
| Application: | marine environments, power generation, offshore, oil & gas and defence sectors Drawn copper nickel tube combines cold and hot working properties,highest degree of seawater corrosion and erosion resistance and great strength.Typical users are distillation and desalination plants and marine, coolers and heat exchangers. |
| Trade Name | UNS | Copper Nickel Industry Specifications | Chemical Composition | Min. Tensile (KSI) |
Min. Yield (KSI) |
Elongation % |
| CuNi 90/10 | UNS C70600 UNS C70620 |
ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463 |
Cu 88.6 min Pb. 05 max* Fe 1.8 max Zn 1 max* Ni 9-11 max Mn 1.0 max |
38 | 15 | 30 |
| CuNi 90/10 | UNS C70600 | EEMUA 144 90/10, 145 90/10, 14 90/1 | Cu rem. Pb. 01 max Fe 1.5-2.0 Zn 0.2 max P 0.2 max S 0.2 max Ni 10-11 Mn 0.5-1.0 |
40 | 15 | 30 |
| CuNi 70/30 | UNS C71500 UNS C71520 |
ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468 DIN 2.0882 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463 |
Cu rem (65.0 min) Pb. 05 max* Fe 0.4-1.0 Zn 1 max* Ni 29-33 Mn 1 max |
52 | 18 | 45 |
| CuNi 70/30 | UNS C71640 | ASTM B111, B543, B552 | Cu rem Pb. 05 max* Fe 1.7-2.3 Zn 1 max* Ni 29-32 Mn 1.5-2.5 |
63 | 25 | - |
