2507 Duplex Stainless Steel Tubing Custom Lengths / Sizes Heat Resistance

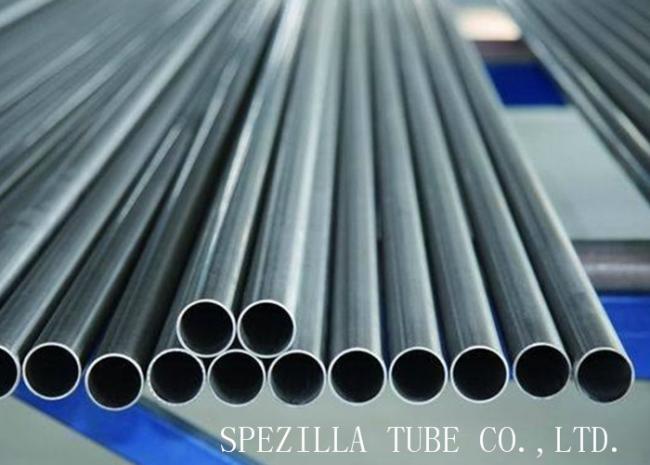

Super Duplex Stainless Steel 2507 ASTM A789 Duplex Steel Tube Annealed
Super Duplex tubing (2507) is made from a Duplex stainless steel, developed as a result of the growing need to solve corrosion problems in Sweden’s sulfite paper industry in the early twentieth century. As the name implies, Duplex alloys are a group of stainless steels – including Duplex, Lean Duplex, 25-Chrome and Super Duplex – with roughly equal portions of austenite and ferrite steel. The chemical composition improves intergranular and pitting corrosion resistance.
Super Duplex 2507 tubing (S32750, S32760) has excellent general corrosion resistance, including excellent resistance to stress corrosion cracking, a tremendous resistance to pitting corrosion and a high resistance to crevice corrosion. 2507 tubing also provides high tensile and impact strength, along with a low coefficient of thermal expansion but high thermal conductivity and good weldability.
Specifications:
S32750 Standard Specification:
| Standard | ASTM A789, ASME SA789 |
| Equivalent Standards | DIN 17458, GOST 9941-81, GOST 9940-81, EN 10216-5, ASTM A790, ASME SA790, DIN 17456 |
| Material | S32750 |
| Equivalent Materials | X2CrNiMoN25-7-4, 1.4410, 2507, F53 |
| Related Products | stainless steel tube, stainless steel pipe, heat exchanger steel tube, ASTM A789 |
Features
- High resistance to chloride stress corrosion cracking
- Chloride pitting and crevice corrosion resistance superior to 317L stainless
- Good general corrosion resistance
- High strength
- Good sulfide stress corrosion resistance
- Useful up to 600°F
Applications
- Chemical process vessels, piping, and heat exchangers
- FGD scrubber systems
- Pulp mill digesters, bleach washers, chip presteaming vessels
- Food process equipment
- Oil field piping, heat exchangers
ASTM A789 S32750 (2507) Stainless Steel Tubes Chemical Composition
| C % | Si % | Mn % | P % | S % | Cr % | Ni % | Mo % | N % | Cu % |
| 0.03 max | 0.8 max | 1.2 max | 0.035 max | 0.02 max | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 | 0.50 max |
ASTM A789 S32750(2507) Stainless Steel Pipe Mechanical Properties
| Tensile Strength, Mpa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 800 min | 550 min | 15 min | 310 max |
Chemical Compositions:
| Chemical Composition (%) Duplex Stainless Steel Pipe | ||
| Alloy | 2205 | 2205 |
| UNS Designation | S31803 | S32205 |
| Carbon (C) max. | 0.030 | 0.030 |
| Manganese (Mn) max. | 2.00 | 2.00 |
| Phosphorus (P) max. | 0.030 | 0.030 |
| Sulfur (S) max. | 0.020 | 0.020 |
| Silicon (Si) max. | 1.00 | 1.00 |
| Chromium (Cr) | 21.0 - 23.0 | 22.0 - 23.0 |
| Nickel (Ni) | 4.5 - 6.5 | 4.5 - 6.5 |
| Molybdenum (Mo) | 2.5 - 3.5 | 3.0 - 3.5 |
| Nitrogen (N) | 0.08 - 0.20 | 0.14 - 0.20 |
| Iron (Fe) | Balance | Balance |
