Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m
Price:
100000 usd
MOQ:
1 set
Delivery Time:
90 days Rail Mounted gantry crane
Brand:
Dowellcrane
Product Description
Steel Scrap Container Gantry Crane High Level Quality Rail Mounted 35m

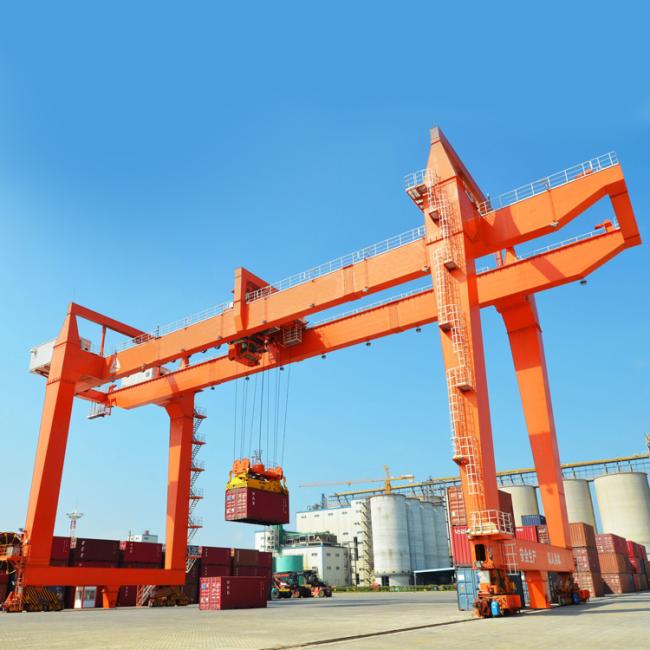

Rail Mounted gantry crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.
| Rail mounted gantry crane technical specifications | ||||
| Capacity | t | 35 | 40.5 | |
| Span | m | 30 | 22 | |
| Lifting Height | m | 16 | 12.3 | |
| Work Duty | m | A6 | A7 | |
| Type of Container | 20' 40' 45' | |||
| Speed | Hoisting | m/min | 0~10 | 10/18 |
| Crab Travelling | 3.4~34 | 40 | ||
| Trolley Travelling | 2.9~29 | 45 | ||
| Rotation | r/min | - | 1.35 | |
| Rail | P43 | QU70 | ||
| Power | 3-Phase A.C. 380V 50Hz | |||
