Low Headroom Electric Hoist With Schneider Electrical Component

Product Description

Introduction
Low headroom wire rope electric hoist with light weight, small size, compact structure,varieties specifications, smooth operation and so on. It is specially for low roof plant or small space shed. It can also track with electric single beam of crane, manual single beam, bridge, suspension, cantilever,gantry cranes.

Operating condition
Environment temperature : -20℃ ~ +40℃
Operating system : Intermediate JC25% heavy grade: JC40% when intermediate working system, electric hoist lifting capacity reduced by 30% will be seen the heavy duty electric hoist JC40%.
main structure
reducer, running organizations, roller equipment, hook devices, couplings, flexible cable current into the device and stopper. Motor is with cone rotor motors, set the power and braking force in one.

Product Characteristics

Double speed lifting motor with 1ton-32ton standard variable.

Frequency lifting motor with 32ton -100ton standard lifting electomagnetic disc brake and maintenance-free design

Control voltage 48V

Lifting limit switch

Variable frequency motor of trolley with the speed of 5/20m/min

Protection grade of electric motor is Grade IP55,and insulation grade is F

Lifting hook group with safety casp

Load lifting limiter

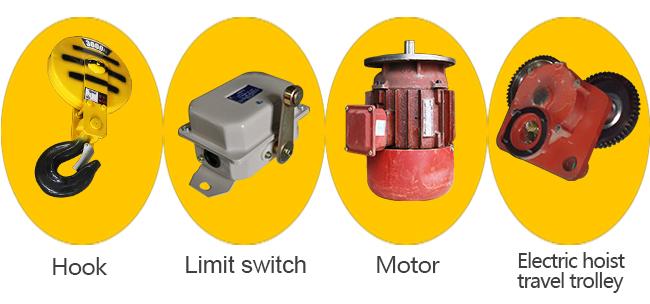

Parts Of Low Headroom Electric Hoist
