Double Girder Electric Motor Driven Hydraulic Overhead Grab Crane 5 Ton

Product Description

QZ type Double Girder Grab Bucket overhead bridge crane is widely usded in hoisting machine. It is dual usage which can be furnished with hook and grab. It is mainly comprised of box-shape bridge, crane grab, trolley mechanism and electric control system. The load handling device is hook.

The load handling device is the grab which is able to capture bulk materials.

has switching mechanism and lifting mechanism.

are separately hung over the switching mechanism and lifting mechanism with four steel wire ropes.

Except the lifting mechanism ,the crane is basically the same as the bridge crane with hook.

Mechanical Features

1. Dobule welding box girder, DIN/FEM standard deflection.

2. Whole length CNC cutting for complete web plate, high deflection accuracy.

3. High quality autometic welding and NDT inspection.

4. Epoxy zinc rich high quality paiting, 2x2 with 140μm.

5. Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors.

6. Full-length service platform along the crane bridge is supplied,where it si equippe with protective hand railing and toe strips.

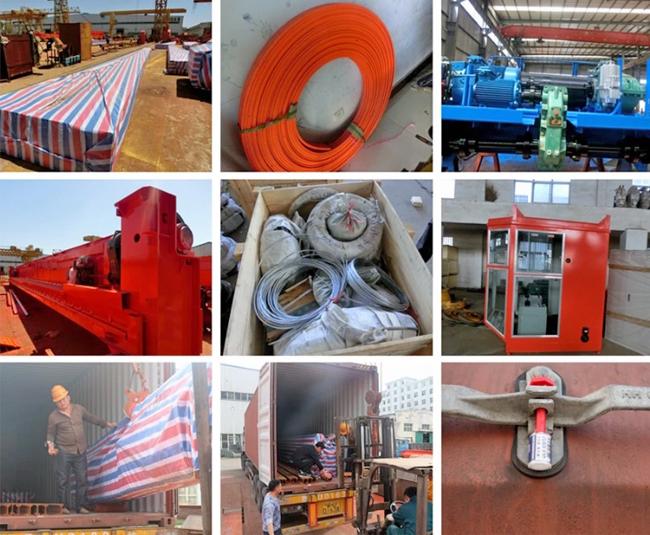

Parts Of Crane
