Lifting Metal Equipment Light 5 Ton Electrical Bridge Overhead Crane

Product Description

Lifting Metal Equipment Light 5 Ton Electrical Bridge Overhead Crane is mainly used for lifting and transporting molten metal in metallurgy, casting and other places. The working level of the whole machine is A7. Heat insulation layer device is installed at the bottom of main beam. Crane assembly and test in accordance with the quality inspection office special [2007] 375 issued by the general administration of quality supervision, inspection and quarantine other places for lifting molten non-metallic materials and hot solid metal may also be selected as reference. (note: in the following figure, H0 is the height of the bumper increase.)

Product Characteristics

Crane model :QDY

Lifting weight :5 t - 75 t

Span :10.5 m - 35 m

Lifting height: 6m-24m

The lifting speed is 5m/min 10m/min 12m/min

The trolley speed is 20m/min

The speed of large vehicle is 30m/min 40m/min 50m/min

Working level :a7-a8

Control mode :wireless remote control + cab control

Environmental Conditions

1. The power supply of the crane is three-phase ac, the rated frequency is 50HZ, and the rated voltage is 380V
2. The working environment temperature is 10-+60℃;
3. The relative humidity at +40℃ shall not exceed 50%;
4. If the above requirements are exceeded, the terms of the order contract shall be implemented according to the user's needs.

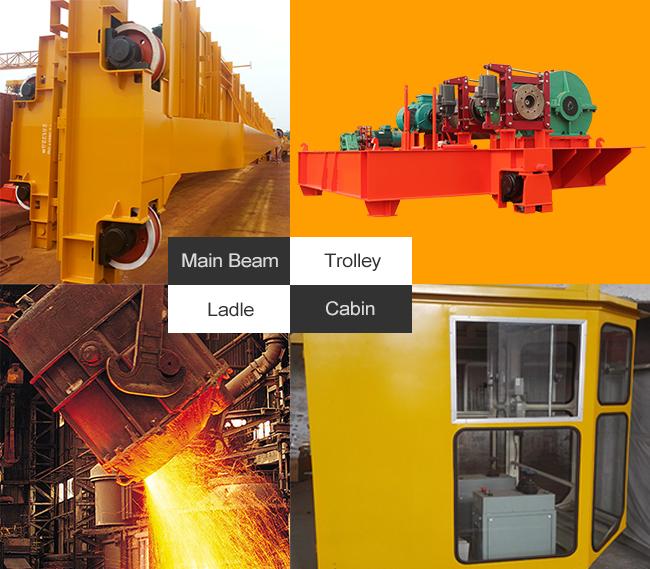

Parts Of Crane
