Single Beam Inversion Hanging Overhead Crane 30m Lifting
single beam inversion hanging overhead crane
Description of single beam inversion hanging overhead crane
The Lx Model Electric Suspension Single Beam Overhead Crane 1~10 ton is used with CD1 and MD1 electric hoists to form a light and small crane with rail operation. The machine is mostly made of dry machinery. Assembly workshops and warehouses, caves and other places. Run rails with I-beams.
Main Features of single beam inversion hanging overhead crane
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
|
Lifting Weight (t)
|
Span (m)
|
Lifting Height (m)
|
Lifting Speed (m/min)
|
Trolley Speed (m/min)
|
Crane Speed (m/min)
|
Recommended Track
|
|
1
|
7.5~22.5
|
6~12
|
0.8/5
|
2~20
|
3~30
|
I20a~I45c
|
|
2
|
6~12
|
I22a~I45c
|
||||
|
3.2
|
6~12
|
I32a~I45c
|
||||
|
5
|
6~12
|
I32a~I45c
|
||||
|
10
|
6~12
|
I40b~I63c
|
||||
|
Working Level
|
A5
|
|||||
|
Power
|
380V,50Hz or other
|
|||||
|
Working Temperature
|
-20~40℃ | |||||

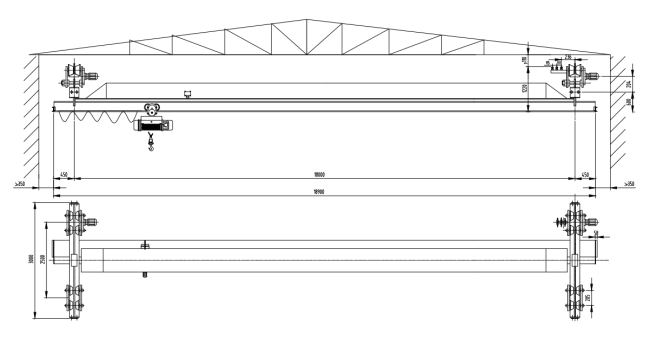

Drawing of single beam inversion hanging overhead crane
Related products
|

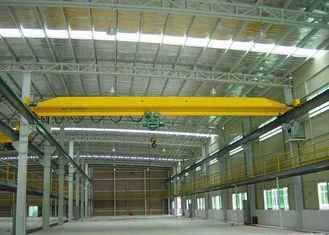

LB Explosion Proof single girder overhead crane
Capacity: 1-20 ton
Hoisting height: 1-30 m
Span: Max 31.5 m
Control: Pendant control, remote control,cabin control
|
|
LDA single girder overhead crane
Capacity: 1-32Ton Span: Max 32M Speed : single speed,double speed working class: A3 control : pendant control, remote control Power supply : 380V-50Hz. 3 phase |
 |
 |
Qz double girder overhead crane
Capacity: 5-150Ton Span: Max 35M Speed : Single (Double) speed,VDF speed control Working Class: A5-A8 Control : Cab control, Remote control Power Supply : 380V-50Hz,3 phase |
|
QD double girder overhead crane
Capacity : 5-150Ton Span: Max 35M Speed: Single (Double) speed,VDF speed control Working Class : A5-A8 Control : Cab control, Remote control Power Supply: 380V-50Hz. 3 phase |
 |
Wooden box+plastic
Hoist and small spares are packed by wooden box ,main girder and end girder are packed by plastic
