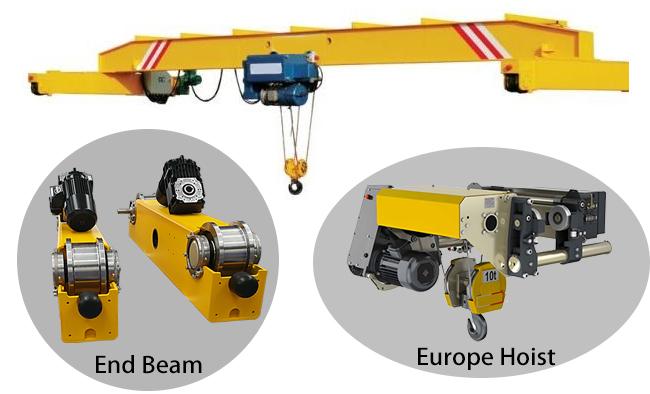

Industrial Workshop Light Duty 20 ton Single Girder Overhead Crane

Product Description

The workshop light duty 20 ton single girder overhead crane is designed and developed with European Standard, which is of current world advanced level. It has many advantages such as: strong rigidity, light dead weight, outstanding structure design etc., which could effective save factory space and investment cost.
This crane could be widely used in machinery manufacture, metallurgy, petroleum, petrifaction, port, railway, civil-aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handling situations that need precise positioning and large components precise assembly situation.
It adopts ground controlling and works at a temperature of minus 25 degrees to 40 degrees.

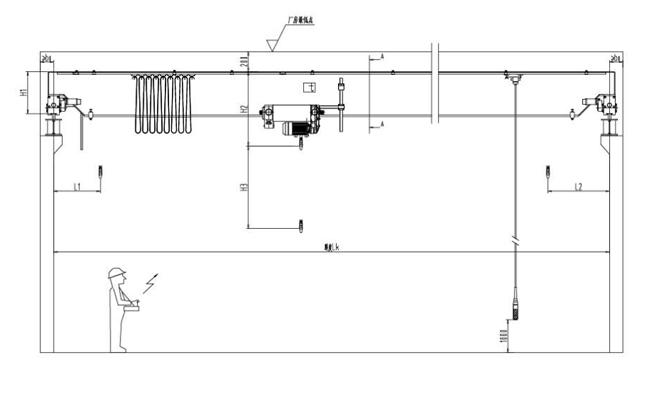

Industrial Workshop Light Duty 20 ton Single Girder Overhead Crane Drawing

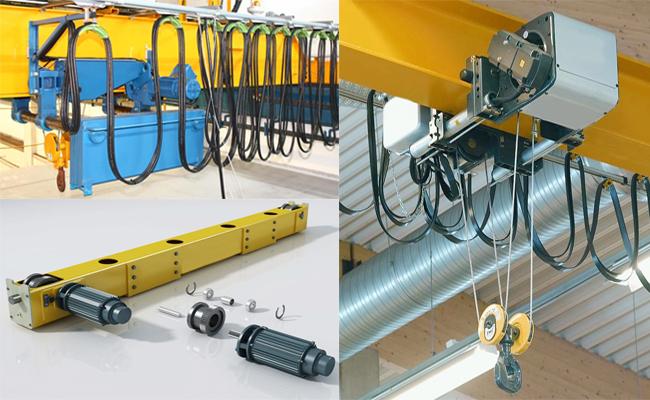

Industrial Workshop Light Duty 20 ton Single Girder Overhead Crane Deatils

Industrial Workshop Light Duty 20 ton Single Girder Overhead Crane Features

1.High reliability, safety, free maintenance rate

• Work duty: A3-A5
• Protection class: IP55
• Insulation class: F
• Continuing rate: 60% ( for the high class motor)
• Cooling rate: 30% than normal crane
• Over temperature protection: 170ºC

2.Compact design

• small size, low self weight, low headroom.Low Noise

3.Power-saved.The total motor power is much lower than normal design

Industrial Workshop Light Duty 20 ton Single Girder Overhead Crane Parameters

After-sales service

• You can use our products at ease, the best after-sales service will be offered from Eternalwin Crane.
• Two year warranty.
• Providing free quick-wear part.
• Low charge for continue maintenance when warranty is expired .
• Exclusive engineer support at any time.
• We can provide free training to end-users.​

Packing and Delivery

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.

FAQ

In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:

1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
