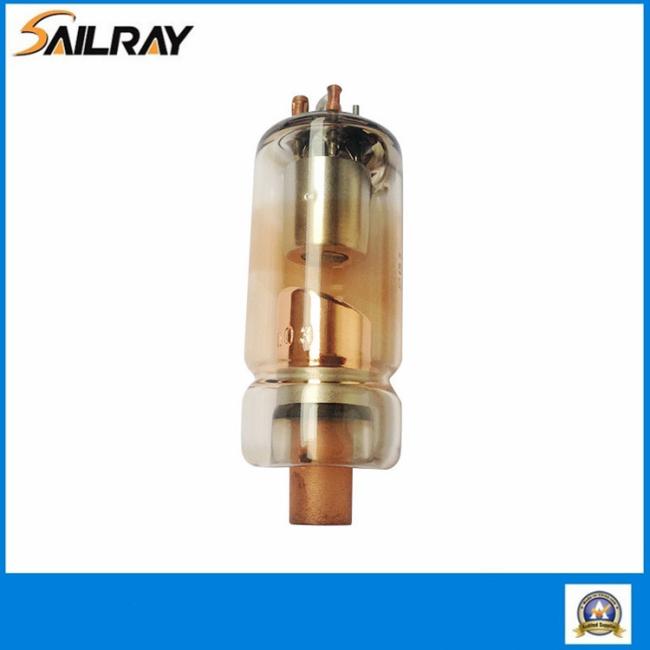

Stationary Anode Dental X Ray Tube 19 Degree Target Angle Durable For Hospital
equivalent to Intro-oral X-ray Tube CEI OX/70-P 8mA 70KV Dental Stationary Anode X-ray Tube
Quick Detail:
Type:Station anode x-ray tube
Application: For intra-oral dental x-ray unit
Model: KL1-0.8-70
Equivalent to CEI OC70-P
Integrated high quality glass tube
Description:
KL1-0.8-70 Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit and available for a nominal tube voltage with self-rectified circuit.
KL1-0.8-70 tube has one focus.
The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode.
The high anode heat storage capacity ensures a wide range of applications for intra-oral dental application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.
Applications:
KL1-0.8-70 Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit and available for a nominal tube voltage with self-rectified circuit.

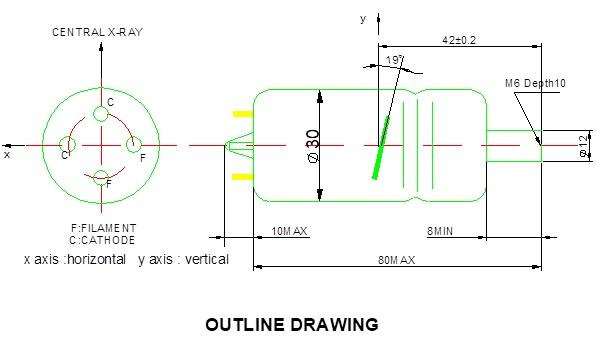

Detailed Images
For more type of our x-ray tube, please see the following chart:
| BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE | ||||||||
| Type | Equivalent | Nominal Focal Spot Value |
Max Rating (W) |
Max. Voltag (kV) |
Filament Characteristics |
Target Angle ( °) |
Anode Heat Content (KJ) |
Dimension |
|
Length× Diameter |
||||||||
| KL1-0.8-70 | CEI OX/70-P | 0.8 | 840 | 70 | 2.2A 3.6V | 19 | 7 | 80×30 |
| KL2-0.8-70G | CEI OCX/65-G | 0.8 | 560 | 70 | 2.8A 4V | 19 | 7.5 | 80×30 |
| KL5-0.5-105 | OPX/105 | 0.5 | 950 | 105 | 3.5A 5.5V | 5 | 35 | 140×42 |
| KL10-0.6/1.8-110 | CEI 110-15 | 0.6/1.8 |
600/ 5200 |
110 | 4.5A 5V/ 4.5A 6.3V |
15 | 30 | 155×50 |
| KL11-0.4-70 | Toshiba D-041 | 0.4 | 430 | 70 | 3A 3.2V | 12 | 4.3 | 67×30 |
| KL12-1.5-85 | 1.5 | 1800 | 85 | 2.5A 2.8V | 23 | 10 | 105×30 | |
| KL13-2.6-100 | 2.6 | 3500 | 100 | 4.5A 7.8V | 19 | 30 | 180×50 | |
| KL20-2.8-105 | CEI OX105-6 | 2.8 | 6000 | 105 | 5A 10V | 19 | 30 | 145×50 |
| KL22-1.8-90 | CEI OX90-2 | 1.8 | 2200 | 90 | 4.3A 6.5V | 19 | 20 | 140×42 |
| KL25-0.6/1.5-110 | CEI 110-5 | 0.6/1.5 |
600/ 3500 |
110 | 4.5A 5V / 4.5A 6.3V | 12 | 30 | 145×50 |
| KL27-0.8-70 | CEI OX/70-M | 0.8 | 840 | 70 | 2.1A 2.8V | 19 | 7 | 72×30 |
| XD2-1.4/85 | 1.5 | 1400 | 85 | 2.6A 3.0V | 23 | 10 | 105×30 | |
| XD3-3.5/100 | 2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 180×51 | |
| XD3A-3.5/105X | CEI OX105-4 | 2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 178×51 |
| XD4-2,9/100 | 1.8/4.2 |
2500/ 10000 |
100 | 4.5A 5V/ 4.5A 10V | 19 | 55 | 230×60 | |
| XD6-1.1,3.5/100 | 1.0/2.6 |
1100/ 3500 |
100 | 4.5A 3.7V/ 4.5A 7.8V | 19 | 30 | 180×50 | |
| XD9-3.1/100 | 2.2 | 3100 | 100 | 4.5A 8.5V | 19 | 30 | 147×50 | |
