0.5 focal spot x ray tube for Panoramic Dental X Ray Unit CEI OPX105
Price:
Negotiation
MOQ:
10PCS
Delivery Time:
30DAYS
Brand:
SAILRAY
Product Description
Panoramic Dental X-ray Tube 840W Equivalent to CEI OPX105 for Dental Equipment
Applications:
KL5-0.5-105 Stationary anode X-Ray Tube is especially designed for panoramic dental x-ray unit and available for panoramic dental radiography.
Specifications:
| Maximum Tube Voltage | 105KV |
| Maximum power(at 1.0s) | 950W |
| Maximum anode cooling Rate | 250W |
| Anode Heat Storage Capacity | 35KJ |
| Filament Characteristics | Ifmax=3.5A,Uf=5.5±0.5V |
| Focal spot | 0.5(IEC 60336/2005) |
| Target Angle | 5° |
| Target Material | Tungsten |
| Cathode type | W filament |
| Dimensions | 140mm length by 42mm diameter |
| Inherent Filtration | Min. 0.5mmAl/50 kV(IEC60522/1999) |
| Weight | approx.380 grams |

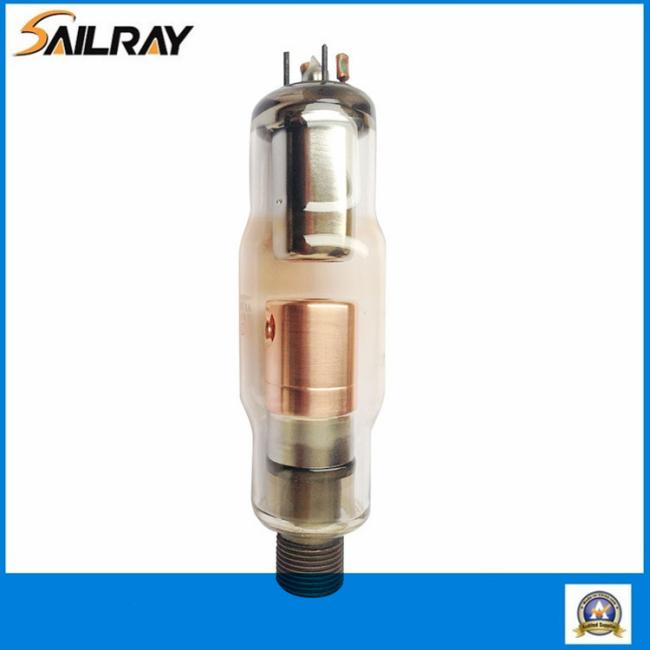

Detailed Images
For more type of our x-ray tube, please see the following chart:
| BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE | ||||||||
| Type | Equivalent | Nominal Focal Spot Value |
Max Rating (W) |
Max. Voltag (kV) |
Filament Characteristics |
Target Angle ( °) |
Anode Heat Content(KJ) |
Dimension |
|
Length ×Diameter |
||||||||
| KL1-0.8-70 | CEI OX/70-P | 0.8 | 840 | 70 | 2.2A 3.6V | 19 | 7 | 80×30 |
| KL2-0.8-70G | CEI OCX/65-G | 0.8 | 560 | 70 | 2.8A 4V | 19 | 7.5 | 80×30 |
| KL5-0.5-105 | OPX/105 | 0.5 | 950 | 105 | 3.5A 5.5V | 5 | 35 | 140×42 |
| KL10-0.6/1.8-110 | CEI 110-15 | 0.6/1.8 |
600 /5200 |
110 | 4.5A 5V/ 4.5A 6.3V |
15 | 30 | 155×50 |
| KL11-0.4-70 | Toshiba D-041 | 0.4 | 430 | 70 | 3A 3.2V | 12 | 4.3 | 67×30 |
| KL12-1.5-85 | 1.5 | 1800 | 85 | 2.5A 2.8V | 23 | 10 | 105×30 | |
| KL13-2.6-100 | 2.6 | 3500 | 100 | 4.5A 7.8V | 19 | 30 | 180×50 | |
| KL20-2.8-105 | CEI OX105-6 | 2.8 | 6000 | 105 | 5A 10V | 19 | 30 | 145×50 |
| KL22-1.8-90 | CEI OX90-2 | 1.8 | 2200 | 90 | 4.3A 6.5V | 19 | 20 | 140×42 |
| KL25-0.6/1.5-110 | CEI 110-5 | 0.6/1.5 | 600/ 3500 |
110 | 4.5A 5V/ 4.5A 6.3V |
12 | 30 | 145×50 |
| KL27-0.8-70 | CEI OX/70-M | 0.8 | 840 | 70 | 2.1A 2.8V | 19 | 7 | 72×30 |
| XD2-1.4/85 | 1.5 | 1800 | 85 | 2.6A 3.0V | 23 | 10 | 105×30 | |
| XD3- 3.5/100 |
2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 180×51 | |
| XD3A- 3.5/105X |
CEI OX105-4 | 2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 178×51 |
| XD4- 2,9/100 |
1.8/4.2 | 2500/ 10000 |
100 | 4.5A 5V/ 4.5A 10V |
19 | 55 | 230×60 | |
| XD6-1.1,3.5/100 | 1.0/2.6 | 1100/ 3500 |
100 | 4.5A 3.7V/ 4.5A 7.8V |
19 | 30 | 180×50 | |
| XD9- 3.1/100 |
2.2 | 3100 | 100 | 4.5A 8.5V | 19 | 30 | 147×50 | |
