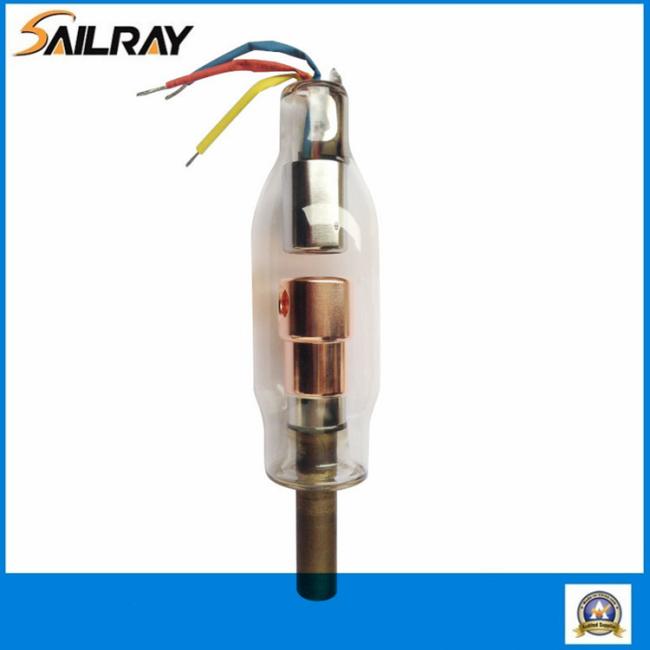

Medical X Ray Tube for diagnostic x ray machine/x-ray equipment
100kV 100mA Dual Focus medical x ray tube For general medical diagnostic x-ray unit
Description:
XD4-2,9/100 tube has two focus. It is designed for general medical diagnostic x-ray unit and available for nominal tube voltage with self-rectified circuit
Applications:
This tube, XD4-2,9/100 is designed for general medical diagnostic x-ray unit and available for nominal tube voltage with self-rectified circuit
Quick Detail:
Type:Station anode x-ray tube
Application: For intra-oral dental x-ray unit
Model: XD4-2,9/100
Integrated high quality glass tube
Specifications:
Nominal Voltage:...........................................................................................................................................................100kV
Nominal Inverse Voltage.............................................................................................................................................110kV
Nominal Focal Spot........................................................................................................................1.8, 4.2(IEC60336/1993)
Filament Characteristics........................................................................................................................small 4.5A, 5±0.5V
...................................................................................................................................................................large 4.5A, 10±1V
Target Material .......................................................................................................................................................Tungsten
Target Angle........................................................................................................................................................................19°
Max. Anode Heat Content ........................................................................................................................................55000J
Continuous Rating.......................................................................................................................................................450W
Permanent Filtration.................................................................................................Min. 0.6mmAl/50KV(IEC60522/1999)
Nominal Anode Input Power..........................................................................................................................small: 2500W
........................................................................................................................................................................large: 10000W

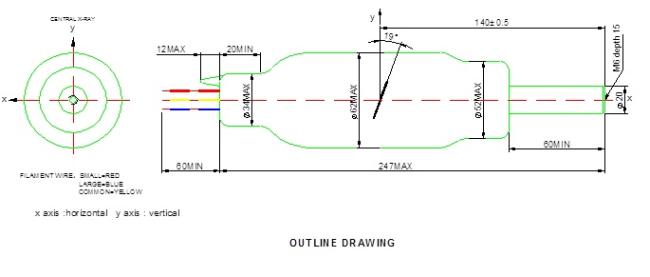

Detailed Images
For more type of our x-ray tube, please see the following chart:
| BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE | ||||||||
| Type | Equivalent | Nominal Focal Spot Value |
Max Rating (W) |
Max. Voltag (kV) |
Filament Characteristics |
Target Angle ( °) |
Anode Heat Content(KJ) |
Dimension |
|
Length ×Diameter |
||||||||
| KL1-0.8-70 | CEI OX/70-P | 0.8 | 840 | 70 | 2.2A 3.6V | 19 | 7 | 80×30 |
| KL2-0.8-70G | CEI OCX/65-G | 0.8 | 560 | 70 | 2.8A 4V | 19 | 7.5 | 80×30 |
| KL5-0.5-105 | OPX/105 | 0.5 | 950 | 105 | 3.5A 5.5V | 5 | 35 | 140×42 |
| KL10-0.6/1.8-110 | CEI 110-15 | 0.6/1.8 |
600 /5200 |
110 | 4.5A 5V/ 4.5A 6.3V |
15 | 30 | 155×50 |
| KL11-0.4-70 | Toshiba D-041 | 0.4 | 430 | 70 | 3A 3.2V | 12 | 4.3 | 67×30 |
| KL12-1.5-85 | 1.5 | 1800 | 85 | 2.5A 2.8V | 23 | 10 | 105×30 | |
| KL13-2.6-100 | 2.6 | 3500 | 100 | 4.5A 7.8V | 19 | 30 | 180×50 | |
| KL20-2.8-105 | CEI OX105-6 | 2.8 | 6000 | 105 | 5A 10V | 19 | 30 | 145×50 |
| KL22-1.8-90 | CEI OX90-2 | 1.8 | 2200 | 90 | 4.3A 6.5V | 19 | 20 | 140×42 |
| KL25-0.6/1.5-110 | CEI 110-5 | 0.6/1.5 | 600/ 3500 |
110 | 4.5A 5V/ 4.5A 6.3V |
12 | 30 | 145×50 |
| KL27-0.8-70 | CEI OX/70-M | 0.8 | 840 | 70 | 2.1A 2.8V | 19 | 7 | 72×30 |
| XD2-1.4/85 | 1.5 | 1800 | 85 | 2.6A 3.0V | 23 | 10 | 105×30 | |
| XD3- 3.5/100 |
2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 180×51 | |
| XD3A- 3.5/105X |
CEI OX105-4 | 2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 178×51 |
| XD4- 2,9/100 |
1.8/4.2 | 2500/ 10000 |
100 | 4.5A 5V/ 4.5A 10V |
19 | 55 | 230×60 | |
| XD6-1.1,3.5/100 | 1.0/2.6 | 1100/ 3500 |
100 | 4.5A 3.7V/ 4.5A 7.8V |
19 | 30 | 180×50 | |
| XD9- 3.1/100 |
2.2 | 3100 | 100 | 4.5A 8.5V | 19 | 30 | 147×50 | |
