30mm Diameter Dental X Ray Tube Dental Radiography Unit For Mouth Machine

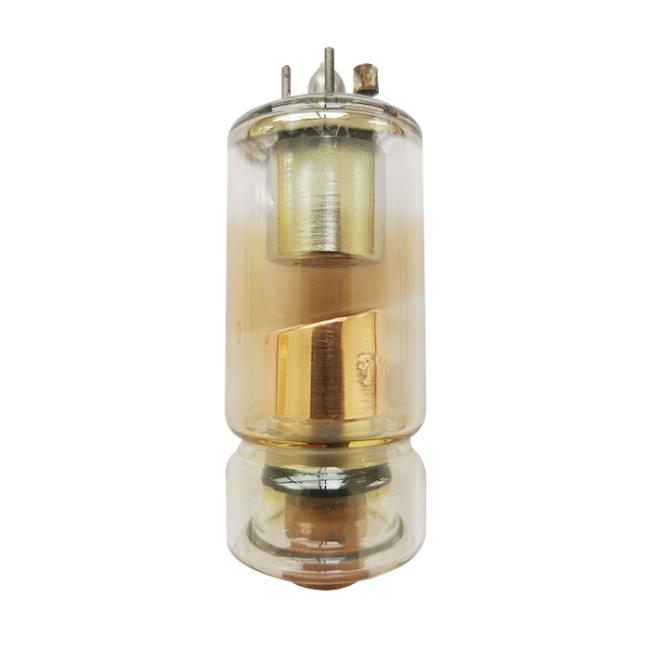

Stationary Anode Dental X-ray Tube D-041 Use for Mouth X-ray Machine
TECHNICAL DATA
This tube is especially designed for dental radiography unit and is available for a nominal tube
voltage with constant potential (DC).
Maximum Tube Voltage……………………………………..….………..……....…………70kV
Maximum Tube Current……………………………..….……….…………………..……...9mA
Maximum power (at 1.0s)………………………………………….……….……..............430 W
Maximum anode cooling Rate………………………………………………………..……110W
Max. Anode Heat Content………….……….…………………..……………………...…..4.3kJ
Filament Characteristics……………………………………………...Ifmax=3.0A,Uf=3.2±0.5V
Focal Spot ..…………………………………………………….……….…0.4(IEC 60336 2005)
Target Angle……………………………………………………………….…………………..12°
Target Material………………………………………………………………….……….Tungsten
Cathode type……………………….…………………………………………….…….W filament
Permanent Filtration………..…………..……………...Min. 0.5mmAl/50 kV(IEC60522/1999)
Dimensions………………………………..…………….…….67mm length by 30mm diameter
Weight…………………………………………………………………………….…….100 grams
For more type of our x-ray tube, please see the following chart:
| BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE | ||||||||
| Type | Equivalent | Nominal Focal Spot Value |
Max Rating (W) |
Max. Voltag (kV) |
Filament Characteristics |
Target Angle ( °) |
Anode Heat Content(KJ) |
Dimension |
|
Length ×Diameter |
||||||||
| KL1-0.8-70 | CEI OX/70-P | 0.8 | 840 | 70 | 2.2A 3.6V | 19 | 7 | 80×30 |
| KL11-0.4-70 | Toshiba D-041 | 0.4 | 430 | 70 | 3A 3.2V | 12 | 4.3 | 67×30 |
| KL12-1.5-85 | 1.5 | 1800 | 85 | 2.5A 2.8V | 23 | 10 | 105×30 | |
| KL27-0.8-70 | CEI OX/70-M | 0.8 | 840 | 70 | 2.1A 2.8V | 19 | 7 | 72×30 |
| XD2-1.4/85 | 1.5 | 1800 | 85 | 2.6A 3.0V | 23 | 10 | 105×30 | |
| XD3- 3.5/100 |
2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 180×51 | |
| XD3A- 3.5/105X |
CEI OX105-4 | 2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 178×51 |
