High Power Labelled X Ray Tube , 0.8 Focal Spot Conventional X Ray Tube
70KV 8 mA Intra-oral Dental X-ray Tube equivalent to CEI OX70-M
Quie detail:
- Especially designed for intra-oral dental x-ray unit.
- This tube has focus 0.8, and is available for maximum tube voltage 70kV.
- nstalled in the same enclosure with the high voltage transformer
Applications:
KL27-0.8-70 Stationary anode X-Ray Tube is especially designed for intra-oral dental x-ray unit .
Specifications:
Nominal Tube Voltage..............................................................................................................................................70kV
Nominal Inverse Voltage..........................................................................................................................................85kV
Nominal Input Power(at 1.0s)................................................................................................................................840W
Max. Current Continuous Service...............................................................................................................2mA x 70kV
Max. Anode Cooling Rate.......................................................................................................................................140W
Max. Anode Heat Content...........................................................................................................................................7kJ
Filament Characteristics............................................................................................................Ifmax 2.1A,2.85±0.5V
Nominal Focal Spot.....................................................................................................................0.8 (IEC60336/2005)
Target Angle...................................................................................................................................................................19°
Target Material...................................................................................................................................................Tungsten
Cathode type....................................................................................................................................................W filament
Permanent Filtration........................................................................................Min. 0.5mmAl/50 kV(IEC60522/1999)
Dimensions.............................................................................................................72mm length by 30mm diameter
Weight.................................................................................................................................................................90 gram

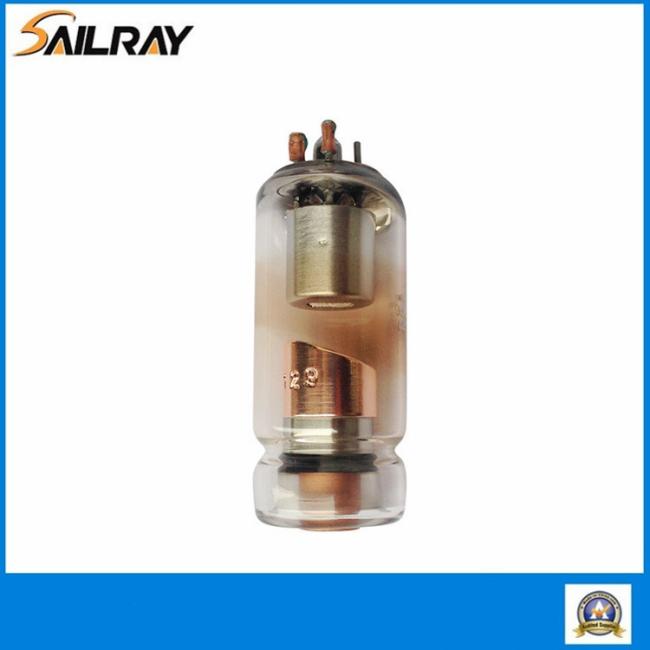

Product Images
For more type of our x-ray tube, please see the following chart:
| BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE | ||||||||
| Type | Equivalent | Nominal Focal Spot Value |
Max Rating (W) |
Max. Voltag (kV) |
Filament Characteristics |
Target Angle ( °) |
Anode Heat Content(KJ) |
Dimension |
|
Length ×Diameter |
||||||||
| KL1-0.8-70 | CEI OX/70-P | 0.8 | 840 | 70 | 2.2A 3.6V | 19 | 7 | 80×30 |
| KL2-0.8-70G | CEI OCX/65-G | 0.8 | 560 | 70 | 2.8A 4V | 19 | 7.5 | 80×30 |
| KL5-0.5-105 | OPX/105 | 0.5 | 950 | 105 | 3.5A 5.5V | 5 | 35 | 140×42 |
| KL10-0.6/1.8-110 | CEI 110-15 | 0.6/1.8 |
600 /5200 |
110 | 4.5A 5V/ 4.5A 6.3V |
15 | 30 | 155×50 |
| KL11-0.4-70 | Toshiba D-041 | 0.4 | 430 | 70 | 3A 3.2V | 12 | 4.3 | 67×30 |
| KL12-1.5-85 | 1.5 | 1800 | 85 | 2.5A 2.8V | 23 | 10 | 105×30 | |
| KL27-0.8-70 | CEI OX/70-M | 0.8 | 840 | 70 | 2.1A 2.8V | 19 | 7 | 72×30 |
| XD2-1.4/85 | 1.5 | 1800 | 85 | 2.6A 3.0V | 23 | 10 | 105×30 | |
| XD3- 3.5/100 |
2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 180×51 | |
| XD3A- 3.5/105X |
CEI OX105-4 | 2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 178×51 |
