Soybean Industrial Oil Press Machine Cold Pressed For Healthy Cooking Oil
Soybean oil press machine cold pressed for healthy cooking oil
Brief Introduction:
1. Automatic screw oil extract machine with vacuum filtration, fast purification and automatic temperature control technology.
2. The machine can be squeezed more, saving time, effort and space. It is easy to operate so that one person can operate it.
3. It can set the heating temperature, directly filter while pressing and has high oil yield and pure oil.
4. This machine can work continuously for 24 hours. The service life of this machine is ten years or longer.
5. The L shape of oil cake feeding system can directly press the oil cake twice.
Theory:
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Advantages:
1. Stable performance
The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.
2. Oil pure and fragrant
The oil filter is dense that the oil can be filtered clean.
3. High oil yield
The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean.
4. Saving time and effort
The L shape of oil cake feeding system can directly press the oil cake twice.
5. Temperature Control System
The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.
Technical parameters of oil presser:
| Model | 6YL-120 | 6YL-130 A | 6YL-150 | 6YL-160 | 6YL-180 |
| Weight | 1200 kg | 1650 kg | 1800 kg | 1900 kg | 1980 kg |
| Vacuum power | 1.1 kw | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw |
| 3phase | 15 kw | 18.5 kw | 30kw | 30 kw | 37 kw |
| Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Capacity(kg/h) | 120-160 | 160-280 | 220-450 | 300-600 | 400-750 |
| Dimension(mm) | 2000*1600*2700 | 2600*1600*2700 | 2550*1800*2700 | 2650*1900*2700 | 2700*2000*2700 |
Detailed images

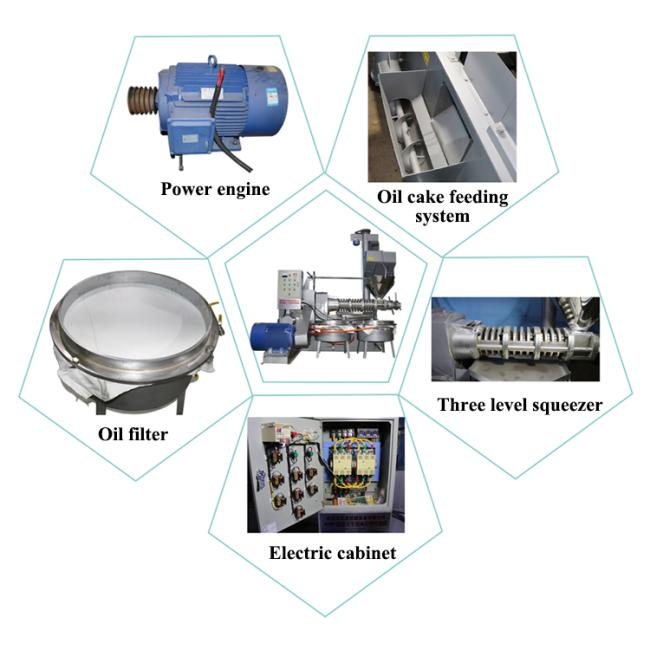

Parts of high quality oil press machine:
This is a fully automated screw oil press eqiupment.Raw materials enter the hopper directly from the automatic seed feeder oilcake enters the oil cake tank through L-type feeding system and start second press control the biggest oil yield.
oil filter system
The oil filter system specifically filters the oil and can be directly consumed after vacuum filtration.
L-shape oil cake feeding system
Electric motor
pure copper,stronger stability.
Seeds application of screw oil making machine
If you want to process other special raw material, please cantact us to ensure.
Packing & shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
Company information
We have our factory, so we can provide product with the best price.
Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and
Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
