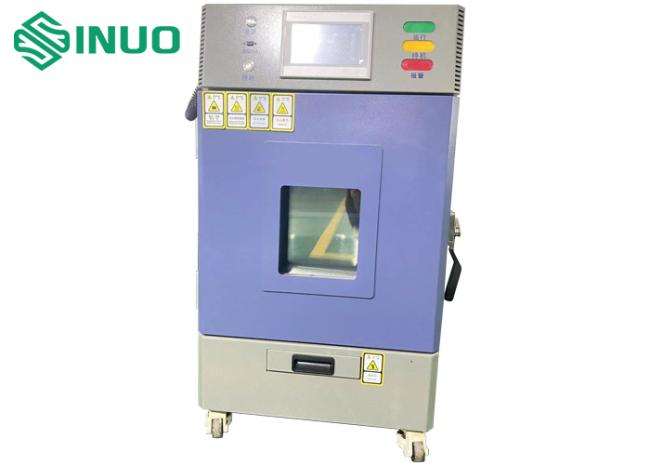

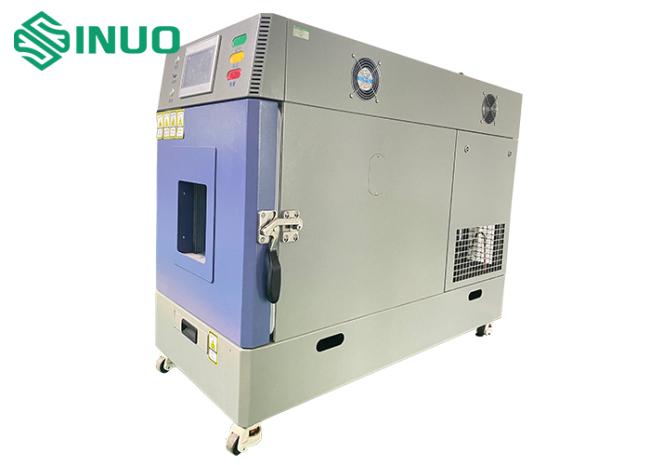

IEC 60068-2 Constant Temperature And Humidity Environmental Testing Chamber 64L

Price Negotiable

Price: Customized

MOQ: 1

Delivery Time: 30 Days

Brand: Sinuo

Product Description

IEC 60068-2 Constant Temperature And Humidity Environmental Testing Chamber 64L

Product Overview For Constant Temperature And Humidity Environmental Testing Chamber:

It conforms to standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Technical Parameters For Constant Temperature And Humidity Environmental Testing Chamber:

Technical Parameters
Power Supply	Single phase: AC220V ± 10%, 50Hz / 60Hz or match client's local power grid
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	400400400 mm	66010201300mm
Temperature Range	-40 °C ~+150°C (can be customized)
Humidity Range	20%～98%RH (can be customized)
Temperature Resolution	0.1℃
Temperature Fluctuation	±0.5℃
Temperature Uniformity	±2℃
Humidity Deviation	±3%RH
Heating Rate	≧2-3°C/min (can be customized)
Cooling Rate	≧0.7-1°C/min (can be customized)
Temperature and Humidity Range Scheme
Main System Composition
Chamber Body	The inner chamber is made of SUS304# stainless steel plates, rounded shape, smooth and easy for clean
	The outer box is made of 304# stainless steel plate, rounded shape, smooth and easy for clean
	Insulation material: polyurethane foam
	Observation window: double-layer explosion-proof tempered glass
	Shelf: Made of 304 stainless steel, detachable shelf
Heating System	Heating method: electric heating
	Adopting the latest new ceramic heating frame, the ceramic material is resistant to high temperature and with good insulation, will not cause leakage short circuit phenomenon. The middle is connected with German imported heating wire, the wire diameter is thick, high temperature resistance and dry burning resistance. The quartz glass tube is inserted in the middle of the heating wire, to prevent the short circuit fault due to heating wire contacting metal chamber.
	Thermal cycling: forced circulation air duct to ensure the heat transfer of the heater, to prevent local temperature is too high and to ensure the required temperature in the working chamber.
Humidification System	Humidification method: adopts external humidification structure, transfers through the air duct. The advantage is that the speed is stable and the influence on the temperature of the inner box is small, so that the temperature rise is stable and the humidification effect is ideal.
	Humidification tube: U-shaped design plus over-temperature probe hole, heating line and heating system adopt the same imported brand material, with anti-dry function to ensure long service life and long-lasting durability of humidification tube.
	Humidification and hydration: There is a drawer type water adding box. The water level can be visually observed through the liquid level display scale on the circulating water tank. The water level is automatically controlled. With water shortage alarm.
Cooling System	Refrigeration method: air-cooled cooling using compressor-heat exchanger
	Compressor: Tecumseh, French brand
	Cold air circulation: forced circulation air duct ensures smooth air return and air supply, ensuring temperature uniformity in the working chamber.
Control System	Touch screen: TIME880, SAMWONTECH
	Temperature control: PID self-tuning, using Class A PT100 platinum resistance sensor
	Function: fixed value test and program test Fixed value test: When the test environment only requires a single temperature and humidity, select this mode to set the required temperature, humidity and running time. Program test: When the test environment requires multiple temperatures and humidity, select this mode to set the temperature, humidity and running time of each program. Operator can set the program running sequences and can set up to 100 groups of programs.
Data Storage	With temperature and humidity curve interface, the data changes and processes can be recorded, with standard R232 interface or U disk communication interface, the data can be downloaded.
Safety Protection	Power-off memory function, phase sequence protection, leakage protection, over-temperature protection, compressor overload protection, water shortage alarm, abnormal protection.
