IEC 60065 150N±10N Rotation Angle Corrosion Resistant Metal Mandrel Tester
IEC 60065 150N±10N Rotation Angle Corrosion Resistant Metal Mandrel Tester

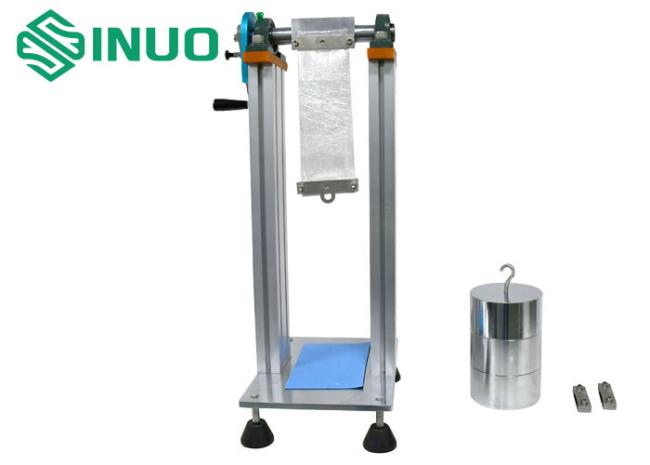

Product Overview:
This tester complies with IEC 60065: 2014 Clause 8.21, Figure 14-16, IEC 60558-1Fig6, IEC 60950 and other standards for tensile and electrical strength verification of indivisible thin layer materials.
The tester has mechanical limits at 0 ° and 230 ° to ensure the accuracy of the test angle.
Technical Parameters:
| Mandrel Material | Made of corrosion-resistance metal |
| Bracket Material | Aluminum profile |
| Weights |
1N * 2,50N * 2 (with through hole), 50N * 1 (including weight of hook and specimen clamping device) |
| Force of the two terminals of material foil |
1N (two sets of 1N weights, also the clamping device for metal foil) |
| Rotating angle of the mandrel | 230 o |
|
Height of mandrel to bottom of unit |
500mm |

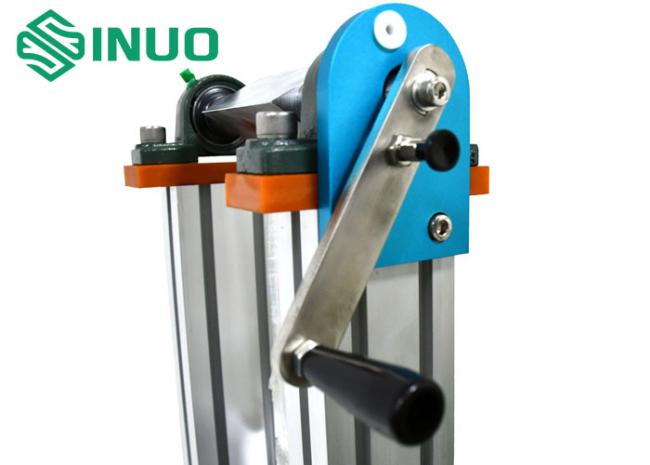

How to rotate the mandrel to 230° position:
Pull out the locking pin and then rotate the mandrel from the 0 ° limit position to the 230 ° limit position to lock the locking pin. Please refer to the figure below.
