IEC 60598-1 Stepless Regulation LED Test Equipment Semi - Lamp Curve Operation Test
IEC 60598-1 Stepless Regulation LED Test Equipment Semi-Lamp Curve Operation Test
Standards & Clauses:
IEC 62560-2015 "Voltage > 50V-safe Fan for constant self-ballasted LED Lamp", Table 2
Article A2.1 of IEC61199-2014 "single cover fluorescent Lamp-Anfan"
IEC 60598-1 / 2014 Lamps-1: testing and testing Article 4.14.2
Samples and Restrictions:
Semi-luminaires intended for connection to Edison screw or bayonet lampholders
Application:
It is used to test the bending moment effect of semi-luminaire on lamp holder to prevent lamp holder from being damaged by excessive bending moment.
Test Principle

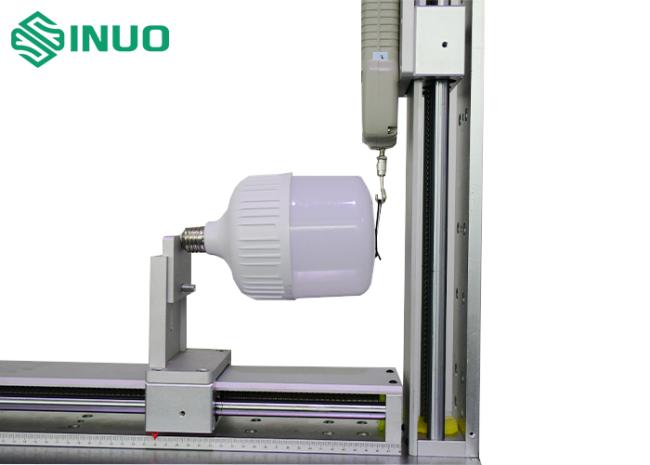

Using a push-pull force gauge to connect with a semi-luminaire through a flexible cord, the force of the free bending of the luminaire is measured, and the actual bending moment value is calculated by multiplying the force arm, compared with the standard requirement.
Structure:
Manual testing, simple and convenient
Technical Parameters:
|

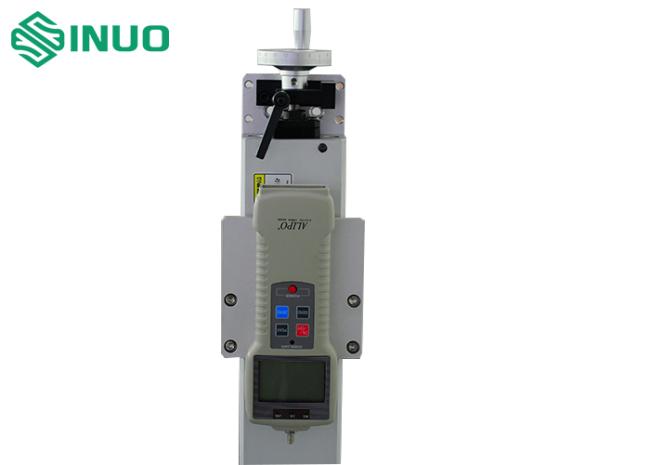

Digital display force gauge |
Digital display, force range: 0-100N, resolution 0.1N |
|
Measurable length of semi-luminaires |
0-400mm |
|
Test requirements |
Please refer to following table:
|
|
Adjustment method |
Stepless adjustment, the screw slider is driven by adjusting handwheel |
|
Extended function |
Fluorescent lamp lamphoders axial force test (G5 15N,G13 30N), conforms to IEC60598.1: 2014 clause 4.4.4 i)
|
|
|
|
