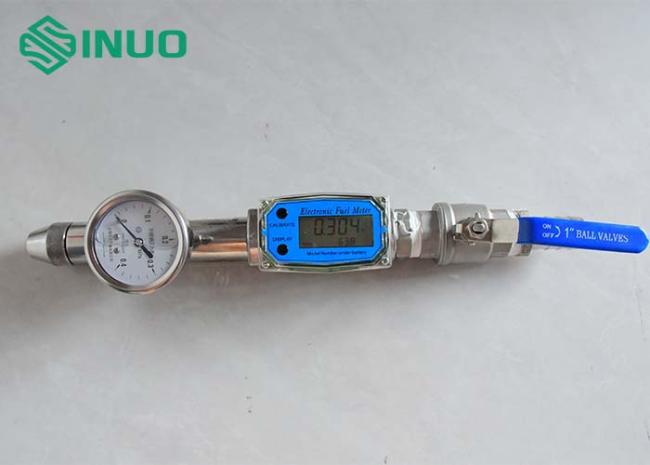

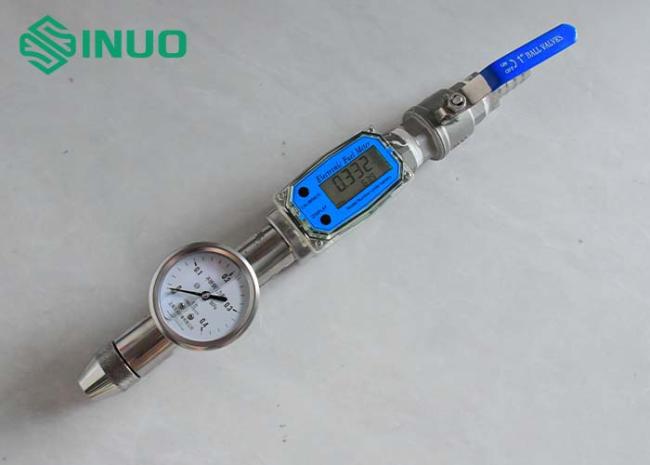

IPX6 Jet Nozzle Test Kit – IEC 60529 Waterproof Tester with Digital Flow Meter Ф12.5mm

Overview:

The IPX6 Jet Nozzle Tester is designed to evaluate the waterproof protection performance of enclosures for electronic and electrical equipment, automotive and motorcycle parts, household appliances, lamps, and other components. The tester complies with IEC 60529-2013 (IPX6), simulating high-pressure water jets from all practicable directions to ensure the durability and sealing of the test object.

Standards Compliance:

IEC 60529-2013 – Degrees of Protection (IP Code), specifically IPX6

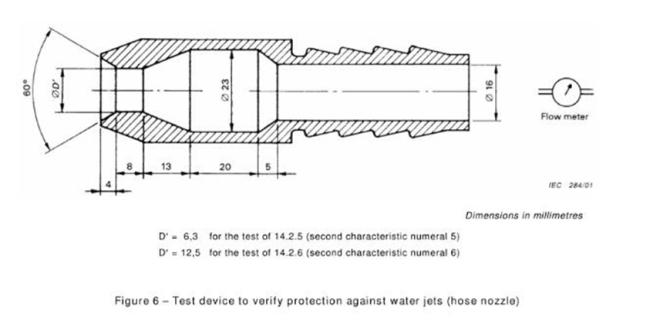

Test method per Figure 6 of the standard

Key Features:

Equipped with a digital flow meter (8–120 L/min) for precise water control

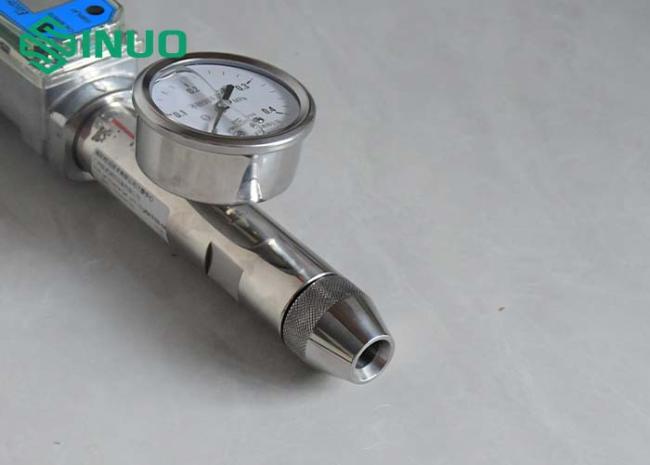

Ф12.5 mm stainless steel nozzle designed for IPX6 testing
Built-in pressure gauge (0–0.25 MPa) for real-time pressure monitoring
Stainless steel quick-connect joint for easy hose connection
Ergonomic jet handle for efficient, directional water spray

Technical Specifications:

Model: SN447B-Ф12.5mm
Nozzle Diameter: Ф12.5 mm
Water Delivery Rate: 100 ± 5 L/min
Spray Distance to Sample: 2.5 – 3 m
Spray Pattern Core: Approx. 120 mm diameter at 2.5 m distance
Test Duration: 1 min/m² (minimum 3 minutes)
Flow Range: 8 L/min to 120 L/min

Application Areas:

Widely used in testing labs, QA departments, and R&D centers for verifying IPX6 waterproof protection in compliance with global standards.
