Battery Small Parts Cylinder Tester ISO 8124-1 For Inspection Of Small Cells And Batteries

Battery Small Parts Cylinder Tester ISO 8124-1 For Inspection Of Small Cells And Batteries

Product information:

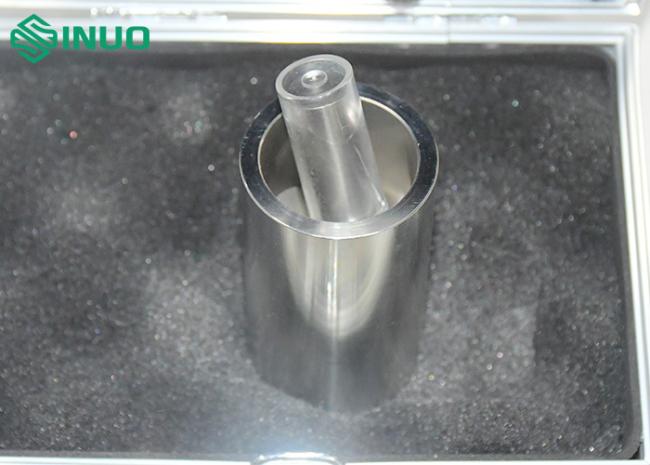

The Battery Small Parts Test Cylinder is a stainless-steel measuring device designed to assess whether batteries and similar components may present a swallowing or choking hazard for children under 36 months. It is manufactured in strict accordance with IEC 60335-1:2013 (Clause 22.12, Figure 13) and ISO 8124-1 (Clause 5.2, Figure 22) standards.

Application Scope

Primarily used for testing button cells, cylindrical batteries, and small electronic parts
Also suitable for evaluating toys and children’s products
Widely applied by laboratories, manufacturers, and safety certification agencies to ensure compliance with international safety regulations

Testing Method

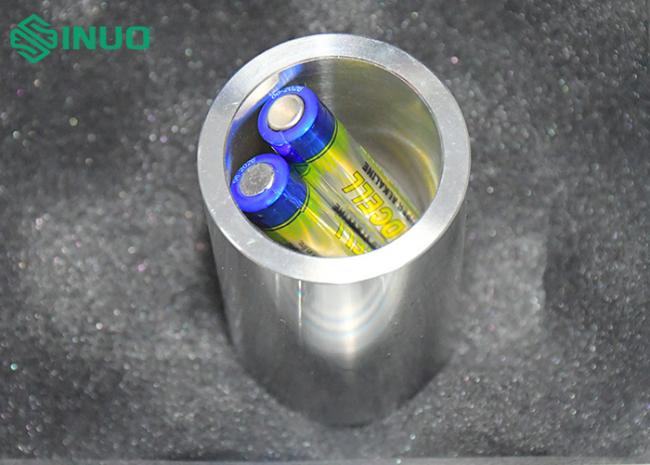

Insert the test object into the cylinder from any orientation:
If the battery or part can fully enter and touch the bottom, it is classified as a small part and considered a potential choking hazard.
If it cannot reach the bottom, it passes the dimensional safety requirement.

Key Features

Made from high-quality stainless steel for accuracy and durability
Provides repeatable, precise measurement in compliance with global child safety standards
Compact and easy to use, suitable for both lab and on-site quality inspections

Specifications

Material: Stainless steel

This battery-focused small parts cylinder is an essential safety testing tool to verify that cells, batteries, and children’s products meet regulatory requirements, preventing accidental swallowing and ensuring product safety.

Notice

1. Do not damage the shape of the device (e.g. scratching, dropping, etc.).

2. Protect from dust and humid environment so that oxidation will not affect dimensional accuracy.
