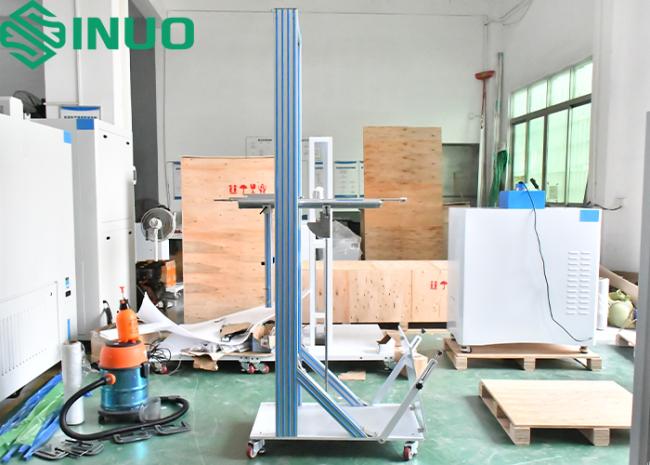

IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 30 days

Brand: Sinuo

Product Description

IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08

This test apparatus is designed for impact resistance testing of household and similar electronic/electrical products and their accessories (plugs, sockets, wall-mounted boxes, screw glands, covers, switches, lamps, etc.) to evaluate product safety performance and strength levels.

Compliance Standards

IEC60068-2-75:2014 "Environment testing for electric and electronic products - Test Eh: Hammer tests"
IEC60598-1:2017 "Luminaires - General requirements and tests"
IEC62262:2002 "Degrees of protection against external mechanical impacts (IK code)"

Structural Features

Trolley structure with mobility for left/right positioning
Adjustable impact point height via screw guide mechanism
Impact angle adjustable from 0° to 90°
1m pendulum tube for free release of striking element
Iron base plate with automotive baked paint coating
Aluminum alloy frame construction
Stainless steel hammer head

Technical Parameters

Striking Elements (Energy/J)	5J (IK08)
Equivalent Mass	1.7 kg (see Table 1)
Striking Elements Material	Steel
Pendulum Tube	1000mm length, 15.9mm outer diameter, 1.5mm wall thickness steel pipe
Impact Point	200-1200mm stroke, manually adjustable via handwheel
Height of Fall	0-500mm with scale display
Striking Element Fix and Release	Mechanical latch fixation, manual release
Base plate	Thickened load-bearing steel plate
Mobility	Caster wheels for positioning
Anti-secondary impact function	No

Annex Tables

IK Code Energy Relationship

IK Code	IK00	IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10	IK11
Energy / J	a	0.14	0.2	0.35	0.5	0.7	1	2	5	10	20	50

Note 1: For higher impact energy requirements, 50J is recommended.
Note 2: Two-digit representation prevents confusion with single-digit energy indicators in other standards.
a: Unprotected according to this standard
