Product Overview
This Pendulum Impact Tester is designed to assess the mechanical resistance of electrical devices under low-energy impact conditions. It is suitable for circuit breakers, socket outlets, plugs, and related accessories, fully complying with IEC 60898 standards.
The equipment delivers a precise pendulum strike to the specimen, providing a repeatable and measurable impact to verify the structural integrity and reliability of electrical components.
Working Principle

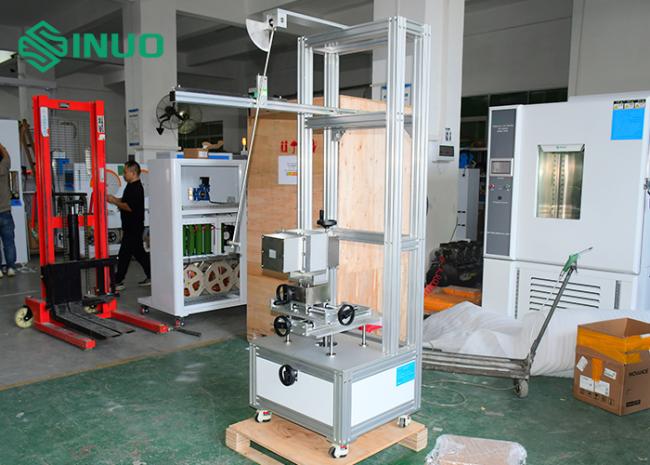

The device employs a calibrated pendulum mechanism to generate a predetermined impact energy. The pendulum is released from a set height, striking the sample at the intended location.
This design allows engineers to observe material response, deformation, or failure under controlled conditions, ensuring accurate verification of the product’s mechanical durability.
The frame is robust and rigid, ensuring the impact energy is consistently delivered across repeated tests, while minimizing vibration or measurement error.
Features & Advantages
Standards-Compliant Design
Fully aligned with IEC 60898 low-energy impact requirements.
Stable and Accurate Pendulum
Ensures high repeatability and precise energy application.
Adjustable Impact Settings
Users can vary release height to match different product specifications.
Open Observation Area
Allows clear positioning of samples and easy visual inspection after testing.
Reliable and Low-Maintenance
Manual operation ensures long-term reliability with minimal maintenance.
Wide Applicability
Suitable for circuit breakers, sockets, plugs, enclosures, and similar electrical components.
Technical Parameters
| Model | SN2507 |
| Applicable Sample Range | Panel mount, rail mount, recessed, panel mount circuit breaker |
| Impact element head | R10 polyamide, hardness HR100 |
| Impact element mass (equivalent mass) | 150±1g(200g) |
| Mounting Bracket quality | 10±1Kg |

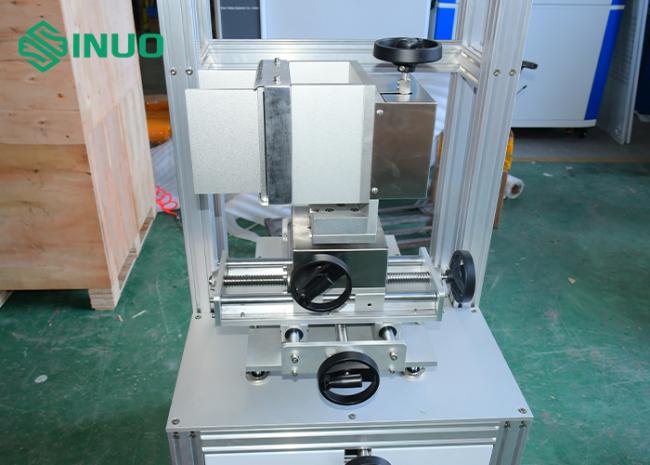

| Mounting brackets | Can rotate ±90° around the mounting plate, the mounting plate can rotate ±90° around the vertical axis, X, Y, Z three axes can be adjusted |
| Position regulation | Bracket X-100～100mm, Y-100～100mm, Z-100～100mm stroke adjustable |
| Swing pendulum | A steel pendulum with a length of 1000±1mm, a mass of 100±1g, a material outer diameter of 9 mm, and a wall thickness of 0.5 mm |

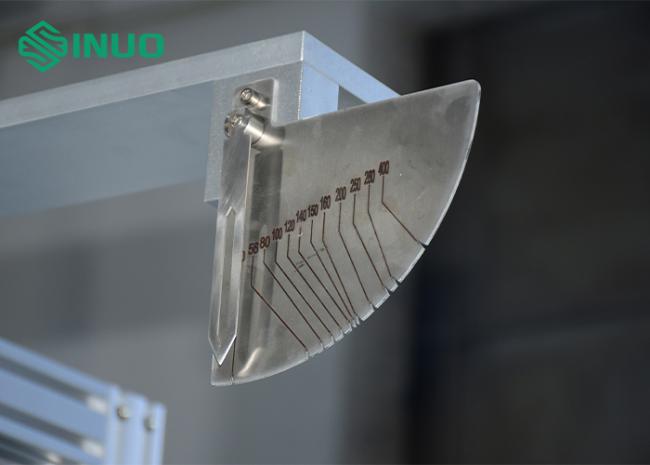

| Impact height | 0-500mm, scale display (corresponding angle conversion) |
| Circuit breaker mounting plate | 175*175*8 laminated board |
| Specimen fixture |
Non-enclosed circuit breaker mounting fixture
Panel mount circuit breaker mounting clamps
|
| Dimension | 860mm×650mm×2000mm |
| Weight | About 140 KG |
| Energy /J | 0.14 | 0.2 | (0.3) | 0.35 | (0.4) | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 | ||
| Equivalent Mass /kg | 0.25 | (0.2) | 0.25 | (0.2) | 0.25 | (0.2) | (0.2) | 0.25 | 0.25 | 0.25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Height of Fall ±1%mm | 56 | (100) | 80 | (150) | 140 | (200) | (250) | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
| Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2. | |||||||||||||||
