IEC60695-2-10 Glow Wire Test Apparatus With Computer Control Fire Hazard Testing Equipment
Price:
Negotiable
MOQ:
1
Delivery Time:
30 Days
Brand:
Sinuo
Product Description

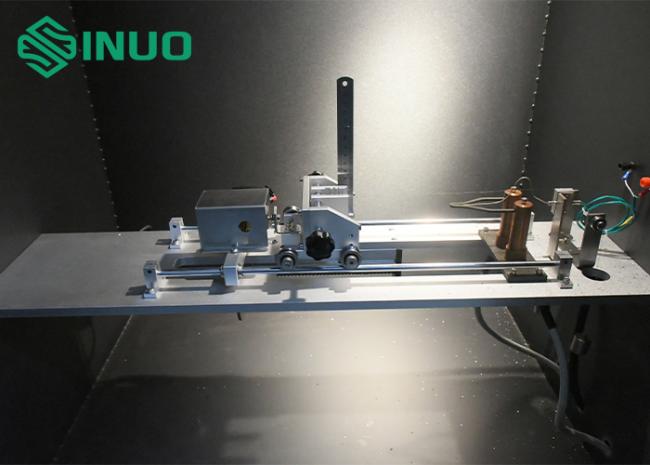

IEC60695-2-10 Glow Wire Test Apparatus With Computer Control
This advanced fire hazard testing equipment simulates thermal stress from glowing components or heat sources like overload resistance. Designed for comprehensive fire safety evaluation of electrical, electronic products, household appliances, and various materials.
Product Overview
Manufactured according to IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598 standards. The apparatus evaluates ignition temperature and flammability index through no-flame ignition source fire testing, ensuring product safety compliance.
Advanced Control System
Features PC-controlled operation with advanced digital stepping motor for precise positioning and rapid adjustment. Real-time parameter monitoring, data storage, query capabilities, and automated test report generation provide superior accuracy and convenience for research and quality control applications.
Testing Principle
The glow wire (Ni80/Cr20) is heated to specified temperatures (550℃-960℃) for 1 minute, then applied vertically to test samples with 1.0N pressure for 30 seconds. Observation of sample and bedding ignition, burning time, and combustion characteristics determines ignition hazards for solid insulating materials and combustible materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Control System | PC-controlled, Windows OS, fully intelligent control |
| Glowing Element | Ф4mm ± 0.04mm (Ni/Cr alloy), standard horizontal configuration |
| Thermocouple | Ф1mm K-type (BB brand), 1100℃ temperature resistance |
| Temperature Range | 500℃-1000℃ (preset), fluctuation < 2℃ |
| Temperature Accuracy | ±0.05% |
| Specimen Pressure | 0.95N ± 0.1N (adjustable) |
| Heating Depth | 7mm ± 0.5mm maximum |
| Movement Speed | 10mm/s - 25mm/s (fully automatic, adjustable) |
| Testing Time | 30s ± 0.1s (1s - 999.9s preset range) |
| Prep Board | 200mm × 200mm × 10mm |
| Test Paper | 1500mm × 550mm, 12g/m²-30g/m² silk paper |
| Test Chamber | ≥ 0.5m³ volume, black background, ≤ 20Lx illuminance |
| Exhaust Port | 100mm diameter |
| Dimensions & Weight | 1100mm × 550mm × 1200mm, 140kg |
| Power Supply | AC 220V/50Hz |
| Drive Method | Motor driven |
| Lighting System | PC controlled, high-grade explosion-proof lamp |
| Current Regulation | PC controlled, automatic or manual operation |
| Exhaust System | PC controlled, automatic or manual operation |
Standard Accessories
- Silver Foil (99.99% purity, 2mm & 0.06mm thickness)
- Paper-wrapping tissue (ISO 4046 specification)
- Type K Thermocouple
- Remote controller
- Exhaust pipe for gas vent
Compliance Standards
IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598
