IEC62560 Clause 15 Figure 8 Lamp Testing Equipment for Non Dimmable Lamps Compliance Test
Price:
Negotiable
MOQ:
1
Delivery Time:
15 Days
Brand:
Sinuo
Product Description

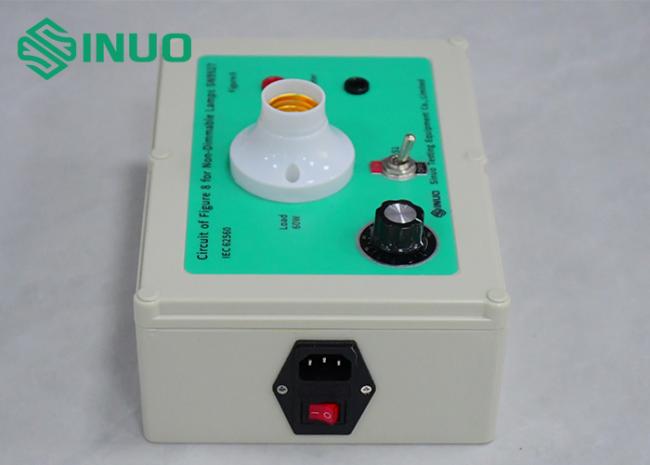

IEC62560 Clause 15 Figure 8 Lamp Testing Equipment for Non Dimmable Lamps Compliance Test
This testing equipment is specifically designed to meet the requirements of IEC 62560 Clause 15, providing a reliable and standardized solution for evaluating the performance of non-dimmable self-ballasted LED lamps. The system simulates the electrical conditions defined in the Figure 8 test circuit, ensuring accurate verification of lamp compliance, stability, and operational characteristics under specified conditions.
Key Features
- Fully compliant with IEC 62560 Clause 15 testing requirements
- Designed for non-dimmable self-ballasted LED lamps
- Accurate simulation of Figure 8 circuit conditions
- Stable and reliable electrical performance testing
- Easy operation with user-friendly interface
- High repeatability for consistent test results
Technical Parameters
| Parameter | Specification |
|---|---|
| Input voltage | AC ≤ 264V 50Hz |
| Output current | ≤ 2A |
Operation Procedure
15. Abnormal Operation Testing
Self-ballasted lamps shall not create hazard under abnormal operating conditions. Self-ballasted lamps shall be constructed so that as a result of abnormal or careless operation, the risk of fire and mechanical damage impairing safety of protection against electric shock is obviated. Applying non-dimmable self-ballasted lamps on a dimmer or an electronic switch is to be tested as a possible case of abnormal operation.
Self-ballasted lamps shall not create hazard under abnormal operating conditions. Self-ballasted lamps shall be constructed so that as a result of abnormal or careless operation, the risk of fire and mechanical damage impairing safety of protection against electric shock is obviated. Applying non-dimmable self-ballasted lamps on a dimmer or an electronic switch is to be tested as a possible case of abnormal operation.
Test Procedure
- Test non-dimmable lamp in test circuit shown in figure 8
- Determine R1 and S1 setting at which the maximum I r.m.s occurs
- Test at this situation, and if the lamp passively fails within 60 min, repeat the test at 10% lower I r.m.s
- The lower I r.m.s shall be set in the decreasing potentiometer resistance direction
- Repeat this procedure until stable operation is achieved for minimum 60 min
