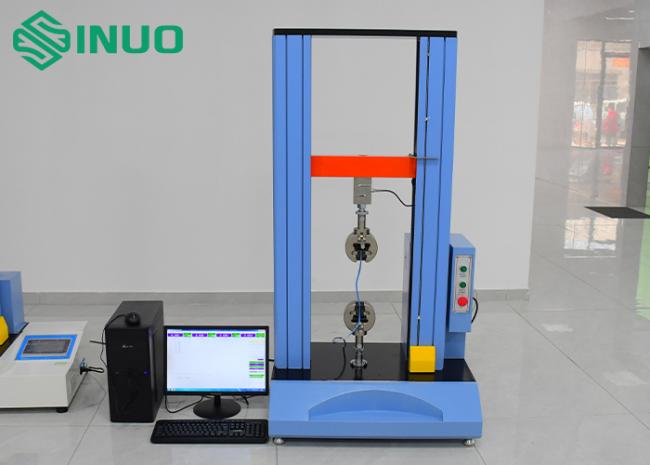

IEC 62196-3 Clause 9 Universal Material Tensile Machine 2KN For Wire And Cable Tensile Test
This universal tensile testing machine with customized fixtures is designed to perform testing according to IEC 62196-3:2026 clause 9, IEC 62196-1:2025 clause 9, 13.3.2, 16.9, 26.7.3, table 6, BS1363-2 clause 11.10.7, 13.11.4, and other relevant standards.

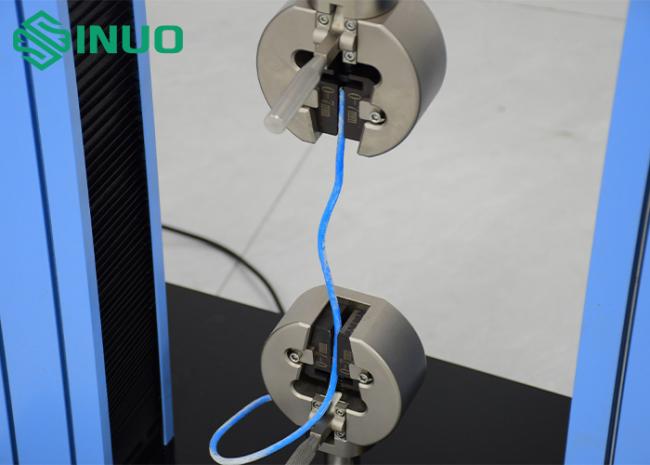

Computer-controlled and widely used for mechanical performance testing of various materials including rubber, plastic, wire and cable, textile, waterproof materials, non-woven fabric, and other non-metallic materials, as well as metal wire, metal foil, metal plate, and metal rod. When equipped with specialized fixtures, it is suitable for various tensile, compression, peeling, shearing, tearing, and bending (folding) tests of finished products.
- Software operating system language: English
- Force units: N, KN, Kgf, Lbf
- Length units: mm/cm/inch, freely convertible
- Control methods: Computer software setting speed, setting load break (rupture), running time

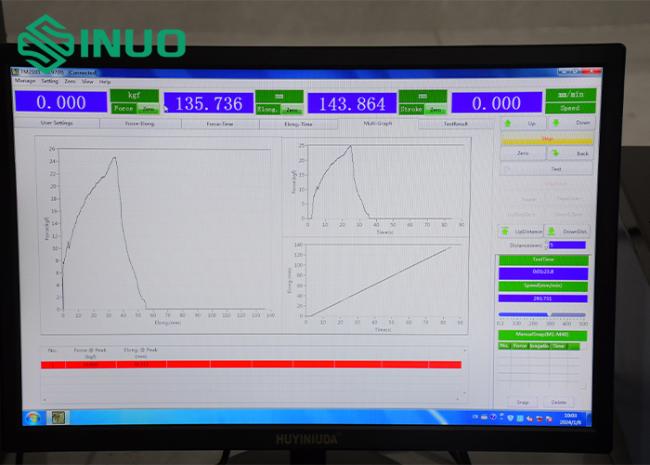

- Curve types: Load-displacement, load-time, displacement-time, stress-strain, strain-time, stress-time
- Customizable curve vertical and horizontal coordinates
- Ambient temperature: 10℃-35℃, relative humidity not exceeding 80%
- Proper installation on solid foundation or workbench
- Vibration-free environment with minimum 1m clearance around
- No corrosive media in surrounding area
- Power supply voltage fluctuation within ±10% of rated voltage
| Test force range | 0-2KN |
| Strength measurement display accuracy | 0.001N |
| Unit switching | Kg, N, Lb |
| Load analysis degree | 1/250000 |
| Loading accuracy | ±0.2% |
| Displacement switching | mm, cm, in |
| Displacement measurement display accuracy | 0.01mm |
| Test stroke | 800mm |
| Test effective width | 400mm |
| Speed test range | 0.01-500mm/min stepless speed regulation |
| Transmission system | Servo motor, Taiwan ZPT ball screw, computer software TM2101 |
| Safety devices | Overload emergency stop, up/down stroke limiting, automatic breakpoint stop |
| Model dimensions | Approximately 800×500×1500mm |
| Working power supply | 220V/60HZ |
| Power | 1.0KW |
| Machine weight | Approximately 150KG |
- Testing machine host: 1 set
- Servo motor: 1 set
- High-precision load sensor: 1 set
- Reducer system: 1 set
- Taiwan ZPT ball screw: 1 set
- Tensile fixture: 1 set
- TM2101 measurement software: 1 set
- Desktop computer: 1 set
