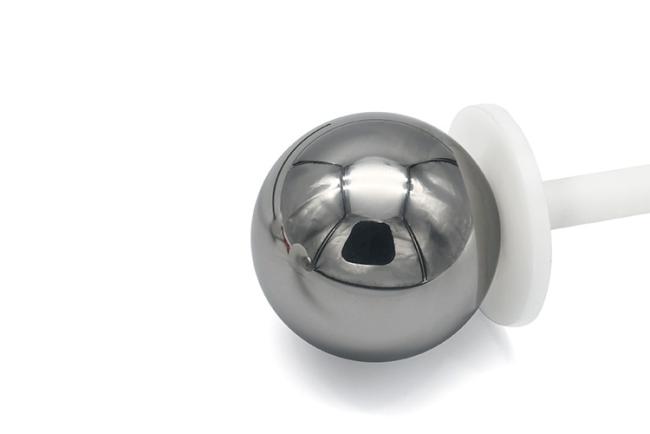

IEC60335-2-24 φ75mm Sphere Test Probe with Nylon Handle
Price:
Customized
MOQ:
1
Delivery Time:
3 Days
Brand:
Sinuo
Product Description
IEC60335-2-24 φ75mm Sphere Test Probe
Standards & Clauses:
The φ75mm test rod meets the standard requirements of IEC 60335-2-24 clause 21.102.
Application
It is used for verifying the lamps of household appliances is protected against mechanical shocks.
Test sample
Lamps of household appliances.
Technical Parameters:
| Sphere diameter (mm) | Φ75±0.5 mm |
| Guard diameter (mm) | Ф45 |
| Handle diameter (mm) | Ф10 |
| Guard thickness (mm) | 4 |
| Handle length (mm) | 100 |
| Sphere material | Rigid metal |
| Guard and handle material | Nylon |
Test Procedures and Operation:
Please refer to the relevant standards.
Take IEC 60335-2-24 clause 21.102 as an example:
Compliance is checked by applying a 75 mm ± 0.5 mm diameter sphere without appreciable force in an attempt to touch the lamp with the lamp cover in place.
The sphere shall not touch the lamp.
