Hand - Held Protection Against Water Jets IPX5 IPX6 6.3 Mm Or 12.5 Mm
IPX5/6 Ф6.3mm Ф12.5mm Hand-held Protection Against Water Jets
Overview:
Water Jets is used to test electrical and electronic products, automotive and motorcycle parts, home appliances, seals and lamps for the performance of equipment and components under Water spraying conditions. The purpose is to verify the protection of the enclosures against Water spraying at IPX5 and IPX6 levels.
By controlling the flow of Water supply to ensure that the Water jet reaches the required speed, the housing of the test equipment is subjected to Water jet test in all possible directions.
Meet the standard: IEC60598-1:2014 and IEC60529:2013
Structure:
This device is manufactured according to IEC60529:2013.
Place of use: temperature 15-35°C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860mbar-1060mbar), the ground should be flat, with lighting, water and drainage function is good
Use water source: clean water or tap water without impurities, and distribute water to clean the filter
Technical Parameters:
| Model | SN447 A | SN447 B |
| Nozzle Internal Diameter | Ф6.3mm | Ф12.5mm |
| Delivery Rate | 12.5±0.625L/min, flow meter is adjustable | 100±5 L/min, flow meter is adjustable |
| Distance from Nozzle to Enclosure Surface | 2.5~3m | 2.5~3m |
| Core of the Substantial Stream | Circle of approximately 40 mm diameter at 2.5 m distance from nozzle | Circle of approximately 120 mm diameter at 2.5 m distance from nozzle |
| Test Duration | Likely 1min/m² (minimum: 3 min) | Likely 1min/m² (minimum: 3 min) |
| Pressure Gauge | 0~0.25MPa | 0~0.25MPa |
| Optional | 0-18L/min rotameter, flexible hose | 20-120L/min rotameter, flexible hose |

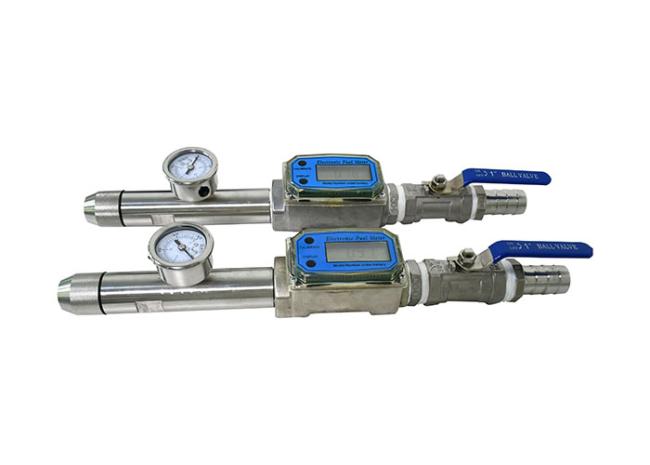

Hand-held Protection Against Water Jets:
