IEC 61855 Omega K Thermocouple Temperature Tester For Handheld Hair Dryers
Price:
Negotiable
MOQ:
1
Delivery Time:
15days
Brand:
Sinuo
Product Description
IEC 61855 Omega K Thermocouple Temperature Tester For Handheld Hair Dryers
Product overview:

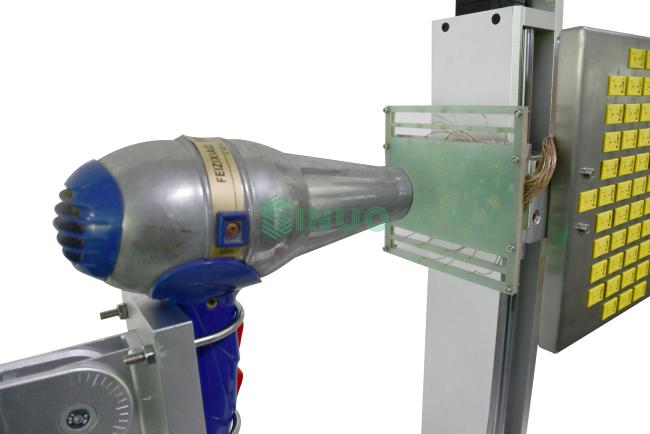

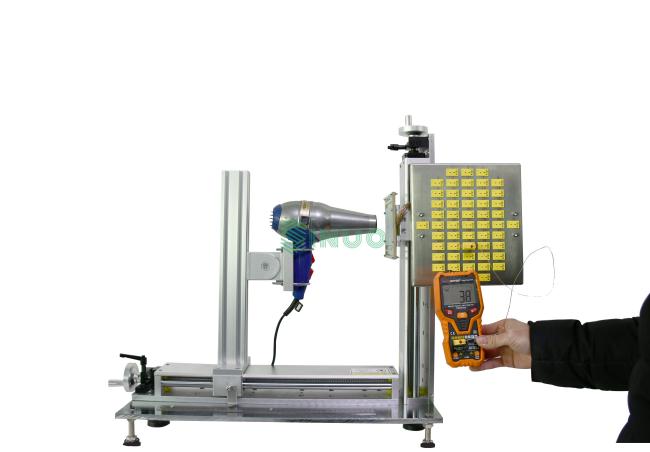

The temperature measuring device is designed and manufactured in accordance with UL 859 and meets the requirements of Figure 2 and 3 of Article 6 of IEC 61855. , The sample we chose is a hand-held hair dryer.
Working principle:
It uses the temperature inspection instrument to monitor the temperature of the measuring point according to the standard position, and modify it according to the standard requirement of clasue 6.5.2 formula.
Technical Parameters:
| Configuration | The temperature inspection instrument is provided by operator |
| Measuring plate material | Made of epoxy board, aluminum bracket |
| Specimen mounting bracket | Adopts sliding table, the distance from the temperature measuring board can be finely adjusted by the screw |
| Thermocouple | Omega K type, thread length 0.25mm |
| Thermocouple layout | According to the position requirements of standard figure 2, 53 points are arranged, and the holes are filled with epoxy powder |
| Measuring Plate Size | Length * Width* Thickness:140×134×14.2mm, according to Figure 2 |
