IEC 60335-1 Electrical Clearance Measuring Gauge Creepage Distance Test Cards
IEC 60335-1 Electrical Clearance Measuring Gauge Creepage Distance Test Cards
Standards & Clauses:
Article 27 of GB2099.1-2008 "Plugs and Sockets for Household and Similar Purposes Part 1: General Requirements"
Article 23 of GB16915.1-2014 "Switches for household and similar fixed electrical installations-Part 1: General requirements"
IEC60884-1: 2006 "Plugs and socket-outlets for household and similar purposes- Part1: General requirements" clause 27
IEC60669-1:2007 "Switches for household and similar fixed-electrical installations-Part1: General requirements" clause 23
Samples and Restrictions:
This Electrical Clearance Measuring Gauge Creepage Distance Test Cards suitable for measuring the distance between two conductive parts or between a conductive part and the accessible surface of the appliance along the surface of the insulating material
The gauges are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.
Technical Parameters:

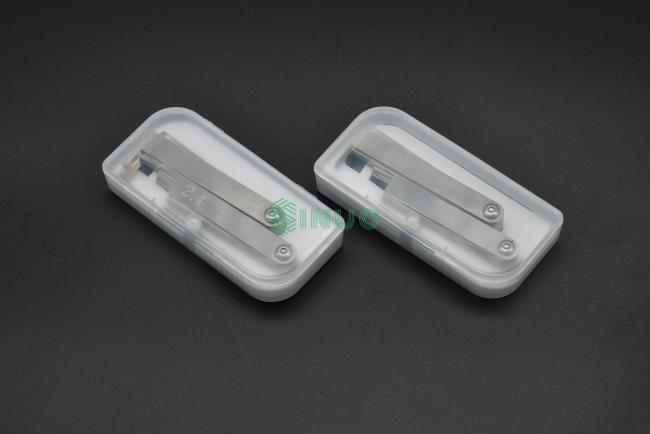

The set of creepage distance gauges are integrated with 30 pieces of creepage distance gauges:
1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm
/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm
Material: Stainless steel
| Sample scope, purpose, principle, structure and use environment | |
| Sample range | Electric appliance conductive parts |
| Test purpose | Suitable for measuring the distance between two conductive parts or between a conductive part and the accessible surface of the appliance along the surface of the insulating material |
| Test principle | Stainless steel claw type to verify the creepage distance between conductive parts |
| Performance | |
| Size | 1.0,1.05,1.1,1.2,1.25,1.3,1.4,1.5,1.6,1.7,1.8,1.9,2.0,2.1,2.2,2.4,2.5,2.8,3.2,3.6,4.0,4.2,4.5,5.0,5.6,6.3,7.1,8.0,9.0,10mm |
| Specification | One set for straight and curved |
| Material | Stainless steel plate |
