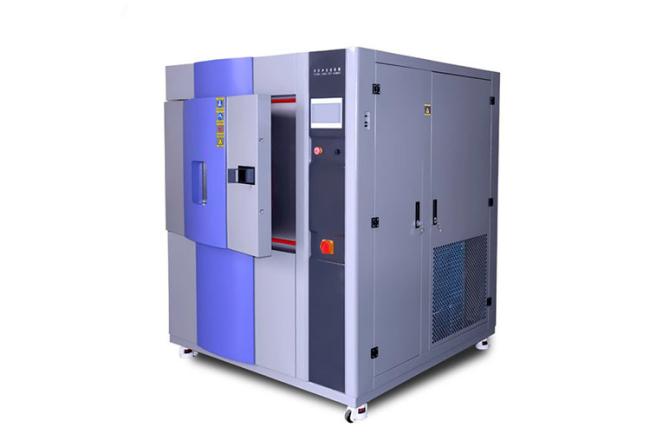

IEC 60068-2-1 Three Zones Thermal Shock Test Chamber
Brief Introduction:
The 3-Zones Thermal Shock Test Chamber meets the standard requirements of IEC 60068-2-1:2007, Environmental Testing—Part 2-1: Tests—Test A: Cold, IDT; IEC 60068-2-2: 1974 Environmental testing for electric and electronic products—Part 2: Test methods—Tests B: Dry heat; IEC 60068-2-14:1984, Basic environmental testing procedures—Part 2: test-test N: Change of temperature, IDT; MIL-STD-883 and etc. It is available for the metal, plastic, rubber, electrical and electronic products, and etc. It is used to test the influence for the test sample under the rapid changes of high and low temperature.
Technical parameters:
| Model | TL-LC64 | TL-LC100 | TL-LC150 | TL-LC200 |
| Inner chamber material | 400×400×400 | 500×450×450 | 600×500×500 | 650×460×670 |
| External chamber material | 1440×1910×1825 | 1520×1990×2050 | 1620×2040×2100 | 1620×1980×2140 |
| Temperature shock range | A:-40～+150℃, B:-55～+150℃, C:-65～+150℃ | |||
| Cold storage temperature range in low temperature zone | 10℃～-50℃； -10℃～-65℃； -10℃～-75℃ | |||
|
Heat storage temperature range in high temperature zone |
+50℃～+180℃ | |||
| Impact reset time | About 5 mins | |||
| The constant temperature time of high-low temperature shock | Above 30 min | |||
| High temperature setting | +60℃ ～ +150℃ | |||
| Low temperature setting | -65℃ ～ -10℃ | |||
| Temperature fluctuations in the sample area | ±0.5℃ (at constant temperature) | |||
| Temperature accuracy range | Setting accuracy: ±0.1℃, indication accuracy: ±0.1℃, resolution: ±0.1℃ | |||
| Temperature variation | ±2°C (no load, at constant state) | |||
| Temperature sensor | High-precision A grade PT100 temperature | |||
| The refrigerant | R404a,R23 | |||
| Chamber structure | With independent product test area, high temperature storage area, low temperature storage area | |||
| Inner chamber material | SUS304 stainless steel plate | |||
| External chamber material | Cold rolled board baking varnish | |||
| Insulation material | Rigid polyurethane foam + insulation cotton | |||
| Circulation method | Multi-wing fan | |||
| Heater | Nickel alloy electric heater | |||
| Condenser | Shell-tube condenser(water-cooled) | |||
| Evaporator | High-performance fin type with automatic load capacity adjustment, which can be used for a long time under low temperature and high humidity conditions without frosting | |||
| Controller | 7-inch color LCD touch control screen + PLC module | |||
| Program capacity | Usable program capacity: 120 groups at most; time setting: 99 hours and 59 minutes per segment; | |||
| Operating power | About 9～30KW (Automatically turn on heating and cooling system according to PID calculation) | |||
| Power supply | 380V±10%V; 50Hz; three-phase four-wire + grounding wire, protective grounding resistance is less than 4Ω | |||
| Safety equipment | Over-temperature protection, motor overload protection, compressor high-voltage protection switch, compressor over-heat protection switch, compressor over-current protection, over-voltage under-reverse phase protection switch, leakage circuit breaker, cooling water abnormal protection. | |||
