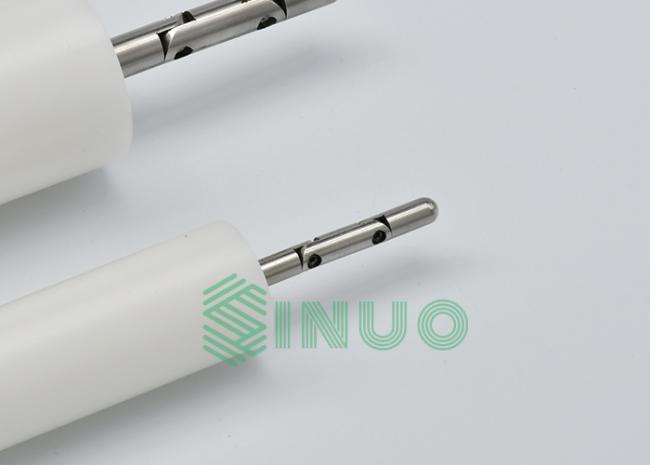

IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe
IEC 60065:2014 clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe
Product Overview:
This probe conforms to the standard requirements of IEC 61032 figure 13 test probe 19, IEC 60065:2014 clause 9.1.1.3, etc. This probe is intended to simulate access to hazardous parts by children of 36 months or less.
Probe Dimension:
| Hemispherical radius (mm) | R2.8±0.05 |
| Finger probe diameter (mm) | Ф5.6±0.1 |
| Finger probe length (mm) | 44±0.15 |
| Axes of joints distance (mm) | 14.67 |
| Collar diameter (mm) | Ф25.9±0.3 |
| Collar length (mm) | 101.6±0.3 |
| Extension handle diameter (mm) | Ф25.4±0.3 |
| Extension handle length (mm) | 464.3±0.8 |
| Finger probe material (mm) | Stainless steel |
| Collar and handle material (mm) | Nylon |
Please refer to the relevant standards.
Take IEC 60065:2014 clause 9.1.1.3 as an example:
The test is repeated using small finger probes according to test probes 18 and 19 of IEC 61032:1997. This does not apply if the intended conditions of use prevent the apparatus from being accessed by children.
The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge (use a force gauge to apply required force on the end of the probe directly).
The probe is equipped with a connection cable, for verifying whether the LIVE PARTS touched, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Connect the connection cable of the probe with one terminal of the anti-shock probe experiment device, and then use an additional cable to wire the LIVE PART of specimen with the other terminal of the anti-shock probe experiment device. Showing as following reference picture:
