IEC 60335-1 Clause 21 And Annex B.101 Tumbling Barrel Free Fall Test Apparatus
IEC 60335-1 Clause 21 And Annex B.101 Tumbling Barrel Free Fall Test Apparatus
Standards & Clauses:
This Tumbling Barrel Free Fall Test Apparatus conforms to the standard requirements of IEC 60068-2-32 - test procedure 2, required by required by IEC 60335-1 clause 21 and Annex B.101, IEC 60335-2-101:21.101, IEC 60065:2014 clause12.3, etc.
This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
The test times could be preset, and the test device will automatically stop when the test times reaches to the setting value. The operation of this device is easy.
Technical Parameters:
|
Rotate speed
|
5rpm
|
|
Drop rate
|
10time per min
|
|
Material
|
Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad
|
|
Test times
|
0~999999
|
|
Drop height
|
500mm
|
|
Barrel number
|
Single
|
|
Application
|
Plug and socket and similar electrical accessories
|
|
Power supply
|
220V,50Hz |
Samples and Restrictions:
Plugs and sockets, plug-in ballasts/transformers and power sockets installed lamps, non-rewireable connectors.
Application:
It is used to perform free fall test for plugs and sockets, plug-in ballasts/transformers and power sockets installed lamps, non-rewireable connectors.
Test Principle:
The tumbling barrel is driven to rotate by the motor, then the specimen repeatedly free falls onto the specified surface at a specified height.

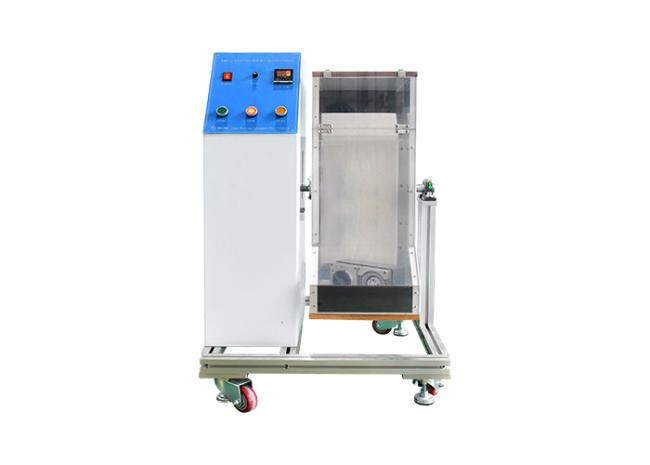

Structure:
The test equipment consists of electric control cabinet and tumbling barrel. The test times can preset, and the test will be stopped automatically after the preset test times are completed.
Equipment dimensions: about: 800 × 800 × 1100 (mm) W × D × H
Equipment weight: 100kg
Use Environment:
Power supply:AC220V±10%/50-60Hz or match client's local power supply requirements
Working temperature: 0-40 ° C, humidity: 30%-90%
