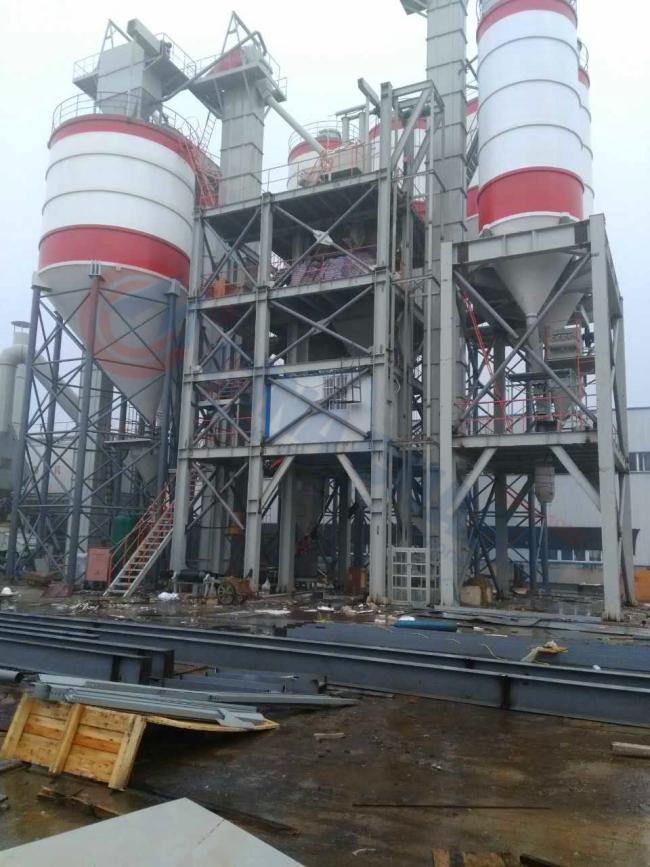

Tower Type Dry Mortar Mixing Plant , Dry Mix Batching Plant 12 Month Warranty
Tower Type Dry mix mortar plant TLSW3000 dry mix concrete plant dry mix concrete batching plant dry mortar machine
◆Tower type dry mortar product line is suitable for large-scale production.
◆It can produce both ordinary mortar and special mortar.
◆High efficiency,low operating costs, large output, production capacity up to 200t / h
◆compact structure, less floor space, magnificent equipment
|
Model
|
Mixer
|
Power
|
Theoritical capacity
|
Floor Space
|
|
TLSW2000
|
SW2000
|
200
|
40
|
300
|
|
TLSW3000
|
SW3000
|
240
|
50
|
450
|
|
TLSW4000
|
SW4000
|
400
|
70
|
500
|
|
TLSW6000
|
SW6000
|
650
|
90
|
700
|
|
TLSW8000
|
SW8000
|
700
|
110
|
700
|
|
TLSW10000
|
SW10000
|
800
|
130
|
700
|
|
TLDW2000
|
DW2000
|
200
|
40
|
300
|
|
TLDW3000
|
DW3000
|
240
|
50
|
450
|
|
TLDW4000
|
DW4000
|
400
|
80
|
500
|
Mixer
By means of streamlined design, the contact area between the mixing arm and the material increases, and the blades on the two shafts work in a convective state, thus effectively forming the shear and diffusion of particles.
Biaxial agitation without gravity can prevent the separation of material and greatly improve the mixing efficiency. Ordinary mortar can mix the material more than 90% evenly in 30 seconds.
Metering System
●Accurate raw material measurement-----The cement powder is metered by a screw conveyor, and the sand material is metered by a precise metering valve. The powder admixture is controlled by a unique ultra-fine 114 screw machine with a suitable frequency converter.
●All weighing electrical components of each weighing hopper adopt a joint venture brand
●It has excellent anti-interference, anti-impact and anti-electromagnetic performance, and the measurement accuracy of admixture can reach ±0.5%.
Dryer
Compared with the single-cylinder dryer with the same efficiency, the thermal efficiency is improved by about 50%, and the energy consumption is saved by more than once; and compared with the double-cylinder dryer with the same efficiency, the thermal efficiency is improved by about 25%, and the energy consumption is saved by more than 50%.
Sand Making System
◆Large capacity and high output------VSI sand-making machine has a 30% increase in output and stable operation compared with traditional equipment under the same power.
◆Excellent grain shape-----cube shape, good grain shape, reasonable gradation, adjustable fineness modulus; especially suitable for artificial sand making and stone shaping, practice has proved that compared with other traditional equipment sand making, the shaping effect is increased by 30%;
◆Pay attention to environmental protection-----sand making equipment work noise is small, no pollution. The unique air self-circulation system greatly reduces the exhaust air volume, reduces the dust, and is conducive to environmental protection.
◆Low consumption of vulnerable parts----optimal design of crushing chamber material impact angle, less friction with wear resistant parts, 30% lower operation cost than traditional equipment, which directly reduces the use cost of the equipment
.
