4-5t/H Tile Adhesive Dry Mortar Mixing Plant , Dry Mortar Production Line
Automatic Tile Adhesive Mortar Mixing Machine Dry Mortar Plant for sale dry mortar mixing plant dry mortar production

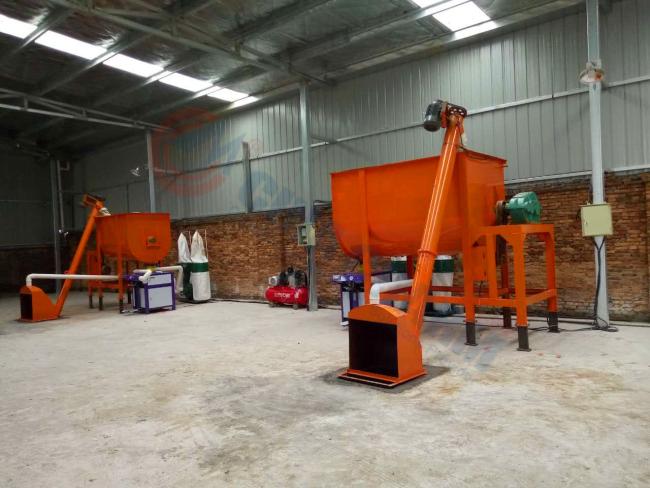

MGDM-3.0 Improved Simple dry mortar production line is used for producing dry mortar with capacity of the 4-5t/h. Simple dry mortar production line. Simple dry mortar production line is based on the latest design concept in Europe, it increase the capacity greatly.
Characteristics of the dry mix mortar plant/dry powder mixer
1. Easy to installation and operation. Discharge quickly and thoroughly
2. It may achieve automatic mattering and filling hence,load,weigh and packaging the materials automatically .
3. The dry mix mortar production line uses a centralized control system, making the equipment easy to operate.
Benefit of the dry mix mortar plant/dry powder mixer
1. It is easy to operate,2-3 people can operate ,effectively save the labor.
2. Environmental friendly:this type mixer improved the working environment,and reduced the working labor intensity.
3. It requires little investment and small occupation area but with good efficiency.greatly save capital investment.
4. This machine is energy-saving, low noise, little pollution.Greatly reduces the production cost
5. We can provide one-stop service from design to installation according to our customers’ specific requirement.

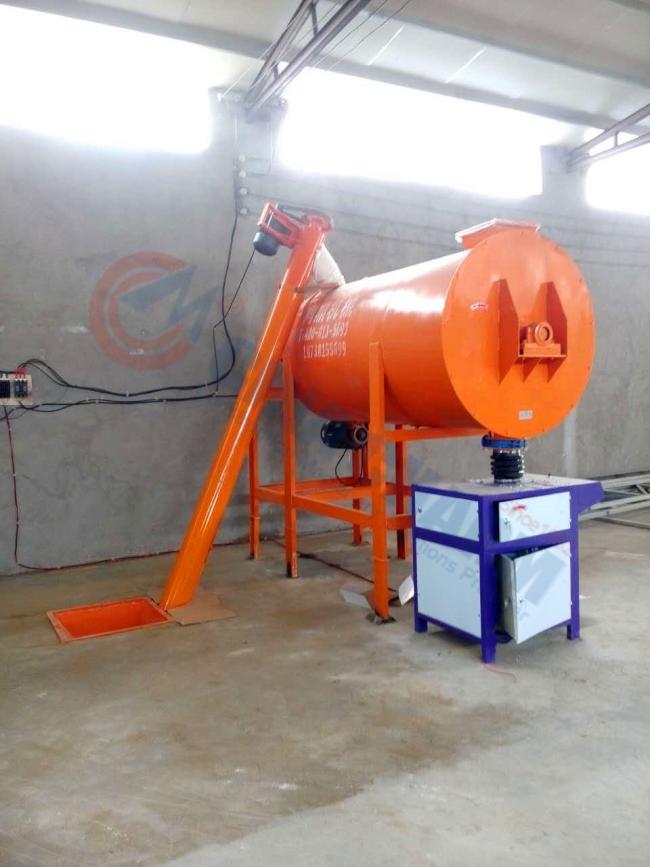

1. Main components and functions of the dry mix mortar plant/dry powder mixer
1) Feeding hopper: Material feed into the mixer from here.
2) Screw conveyor: Used for conveying the materials to the mixer, the conveyor can not heavy load starting.
3) Twin Shaft Agravic Mixer: Used for mixing materials uniformly, and the special paddle blades group can break up the fibre.
4) Finished product silo: Used for storing the finished goods material, waiting for packing.
5) Automatic weighing packaging machine: Used for packing finished product material in the finished products silo, it can automatically weighing and packaging, and accuracy can be + / - 0.5kg.
6) Control cabinet: The power switch control for this equipment of production line
2. Technical parameter of the dry mix mortar plant/dry powder mixer
|
Model
|
out put
|
Occupied area
(square meter)
|
Equipment
height
|
Batching and
packaging
|
|
Improved Simple typle
|
4-5t/h
|
20
|
3-4m
|
Manual batching
Automatic packing
|
|
Semi-automatic type
|
5-8t/h
|
50-60
|
6-7m
|
Manual batching
Automatic packing |
|
|
|
|
|
Automatic batching
Automatic packaging
|
Raw material
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
It can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
