Cement Lime Making Production Plant , Rotary Kiln Nternational Opc Grade 43 Cement Making Plant Machine
Cement Lime Making Production Plant Rotary Kiln nternational Opc Grade 43 Cement Making Plant Machine Rotary Kiln
Product introduction of crusher plant

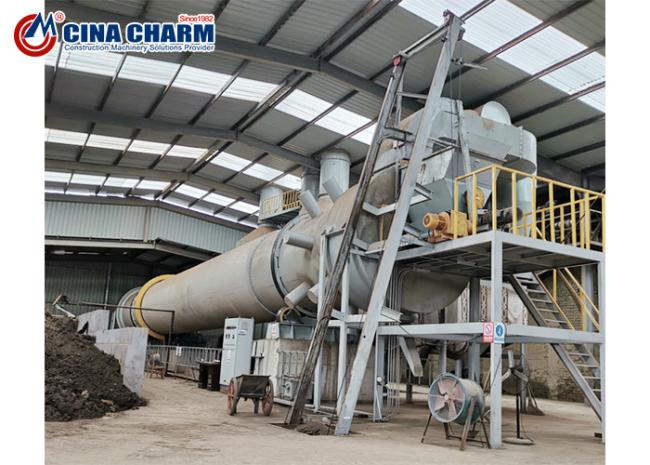

Cement rotary kiln is used for calcination clinker from limestone, clay etc to produce cement. To achieve consistent quality results, it is important to maintain a uniform product temperature at the kiln entry, mid zone, and discharge. In most rotary kilns, the challenge with temperature process control is that the temperature sensor must view through flames or heavy smoke and dust. Consequently, when selecting a sensor, the design, wavelength, and alignment are all important considerations.
Taida cement rotary kiln equipment advantages
1. Rotary kiln is used for making of cement clinker. there are dry / wet methods to make cement.
2. Rotary kiln (metallurgy chemical) kiln is used for magnetic roasting of iron ore.
3. Rotary kiln is used for baking high-alumina mine in the refractory material factory.
4. Rotary kiln is used for baking alumina in the aluminum factory,chrome powder in the chemical plant.
5. Rotary kiln (lime kilns) is used for baking active lime and dolomite in the ferroalloy factory.
1.Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.
2.Catch wheel : including two kinds mechanical wheel and hydraulic pressure.
3.Gears:single or double. Control the rotating speed by buncher, DE machine and frequency variable motor. Be reliable , energy-saving, and efficient.
4.Cylinder tyre bolster: lower bolster has three types: fixed , zoom and floating. The structure is simple ,replacement is convenient and won’t hurt cylinder.
5.Kiln head hood: including stationary type and flexible type.
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | ||
| Diameter(m) | Length(m) | Obliquity(%) | |||||
| ø2.5*40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 |
| ø2.5*50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 |
| ø2.5*54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 |
| ø2.7*42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 |
| ø2.8*44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 |
| ø3.0*45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 |
| ø3.0*48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 |
| ø3.0*60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 |
| ø3.2*50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 |
| ø3.3*52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 |
| ø3.5*54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 |
| ø3.6*70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 |
| ø4.0*56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 |
| ø4.0*60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 |
| ø4.2*60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 |
| ø4.3*60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 |
| ø4.5*66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 |
| ø4.7*74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 |
| ø4.8*74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 |
| ø5.0*74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 |
| ø5.6*87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 |
| ø6.0*95 | 6 | 95 | 4 | 10000 | Max5 | 950*2 | 1659 |
