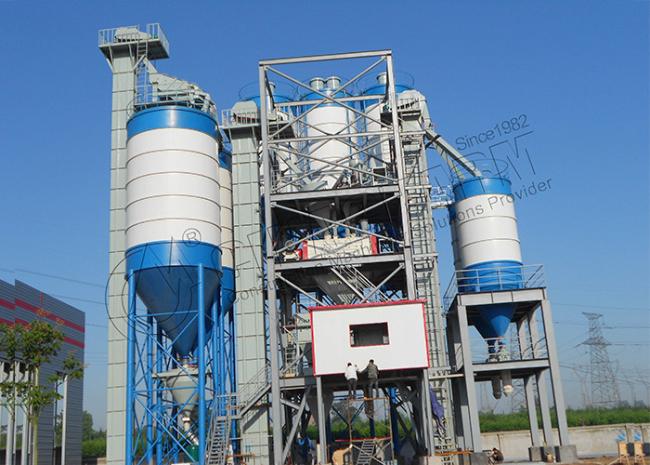

Premixed Batch 80TPH 120TPH Dry Mortar Mixing Plant
Premixed Batch Dry Mortar Production Plant professional making machine/Hot sale high efficiency dry mixed mortar equipment
The advantages of our fully automatic dry mortar mixing equipment:
1. A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2. The ingredients are accurate, can automatically calculate the error and automatically correct.
3. The use of tower layout structure, shorten the transmission distance and increase production efficiency.
4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
5. The control system man-machine dialogue is simple and easy to operate.
6. With strong environmental protection, colleagues who reduce the labor intensity of their staff effectively improve the work environment in the working area.
| Model | XC1200 | XC2000 | XC3000 | XC4500 | XC6000 |
| capacity(t/h) | 10-20 | 20-40 | 40-60 | 60-80 | 80-120 |
| main machine | FJD1200 | FJD2000 | FJD3000 | FJD6000 | FJD4500 |
| power(kW) | 30 | 37 | 55 | 75 | 110 |
| high speed end | two-pole (7.5kW),four-pole(5.5kW)(optional) | two-pole (7.5kW),four-pole(5.5kW)(optional) | two-pole (7.5kW),four-pole(5.5kW)(optional) | two-pole (7.5kW),four-pole(5.5kW)(optional) | two-pole (7.5kW),four-pole(5.5kW)(optional) |
| volume fraction of mixer | 70% | 70% | 70% | 70% | 70% |
| aggregate size (mm) | 0~4.75 | 0~4.75 | 0~4.75 | 0~4.75 | 0~4.75 |
| aggregate scale(kg) | (200~1300)±1% | (200~2200)±1% | (400~3000)±1% | (400~3800)±1% | (500-5800)±1% |
| cement scale(kg) | (100~700)±1% | (100~800)±1% | (200~1300)±1% | (200~1800)±1% | (200~2000)±1% |
| additive scale(kg) | (5~30)±0.5% | (10~50)±0.5% | (10~200)±0.5% | (10~200)±0.5% | (10~200)±0.5% |

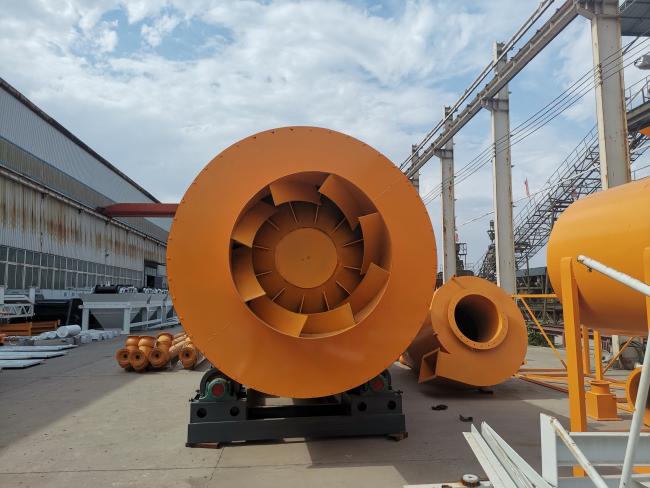

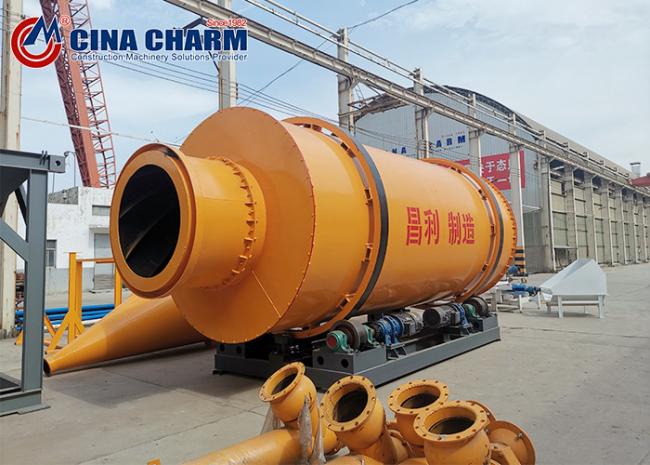

Dehumidification system
Double return roller, Intelligent detection, Easy maintenance
The finished product temperature out of double return drying roller ≤65℃,and it‘s moisture content <0.5%,so that excessive temperature to make the additive ineffective can be effectively avoided.And comparing with triple return roller, which difficult to repair and easy to be scrapped, double return drying roller has unique intelligent detection system, easy to operate control interface etc.
Dust removal system
Integrated and intelligent dust removal
Container type integrated dust removal mode mainly uses gravity precipitation and dust-proof bag these two main approaches, which can keep dust emission less than 20mg/Nm3.And this system is intelligent impulse type. Cleaner production can avoid the dust leaking from the roller and dust sticking to the dust-proof bag effectively.
Metering system
Accurate, Stable, Reliable
The unique variable frequency feeding technique makes the measurement results more accurate(±1%-±2%),even can be superior to industry standard. Our metering system has higher quality and lower cost.
Ordinary mortar agitator
New methods, Efficient mixing, Low energy consumption
The new upgrade spiral vane blending method can be applied to unconventional product formula. It can mix different kinds of aggregate, such as fragile components,light aggregate and large size aggregate perfectly. Intelligent automatic lubrication system is very reliable on quality and easy to be maintained.
Intelligent control system
Safe, Reliable, Never stop, Cloud data safe
Dual computer synchronous production management control system make the production line can be unattended. A trouble warning technology patent is applied to this system. Beyond that, it has achieved remote monitoring, cloud data collection and diagnosis, intelligent fault diagnosis, product quality online inspection and report classification query.
