PLC Control Asphalt Concrete Mix Plant 1800kg/Batch
Good Quality performance productivity Asphalt Concrete Mix Plant

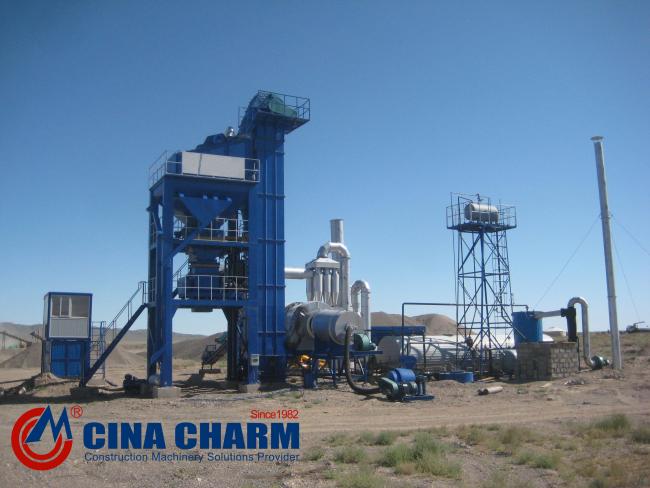

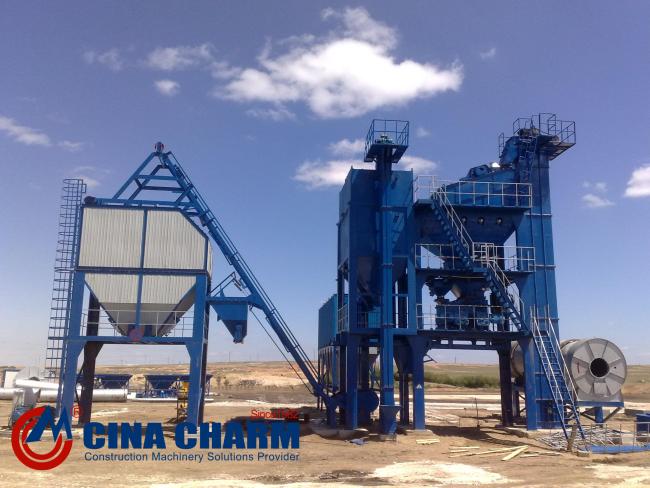

Asphalt mixing plant, also known as asphalt concrete mixing plant, refers to a complete set of equipment used for mass production of asphalt concrete, which can produce asphalt mixture, and is a necessary equipment for building expressways, graded roads, municipal roads, airports, and ports. Asphalt mixing equipment is mainly composed of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage bin, weighing and mixing system, asphalt supply system, powder supply system, dust removal system, finished product bin and control system, etc.
|
Capacity (t/h)
|
120
|
160
|
|
Capacity of each batch (kg)
|
1800
|
2000
|
|
Total installed power (kw)
|
360
|
490
|
|
Aggregate weighing accuracy
|
± 0.5%
|
± 0.5%
|
|
Powder weighing accuracy
|
± 0.5%
|
± 0.5%
|
|
Asphalt metering accuracy
|
± 0.3%
|
± 0.3%
|
|
Temperature control accuracy (℃)
|
≤± 5
|
≤± 5
|
|
Dustproof efficiency (mg/Nm3)
|
≤100
|
≤100
|
|
Batcher length*width (m)
|
2.0 × 3.3
|
2.45 × 3.6
|
|
Batcher bucket capacity (m3)
|
7.0
|
11.3
|
Features of mobile asphalt mixing plant:
1.First-class burners are easy to use and environmentally friendly
2. All-around environmental protection, stable quality, and high efficiency
3. Patents are more stable and accurate
4. Low warehouse mixing rate, maintenance-free and easy operation
5. All-around environmental protection, stable quality, and high efficiency
6. High efficiency, energy saving, stable and wear resistance
7. The optimized design is smooth and reliable
8. Multiple securities without downtime, cloud monitoring is more convenient
Characteristic:
1: The agitator adopts high-strength wear-resistant materials to increase the service life;
2: The first-level cyclone dust removal plus the second-level water dust collector system and the negative pressure dust-proof design of the building body are economical and practical, reducing investment costs for customers;
3: Adopt the linear vibrating screen driven by imported vibrating electric, which improves the screening efficiency and reduces the equipment failure rate;
4: The aggregate hoist adopts plate chain hoisting, which increases the service life of the hoist and improves the stability of operation;
5: Optimized drying drum lifting plate structure makes the drying system more efficient and stable;
6: The whole machine adopts modular design, which makes the transportation and installation faster and more convenient;
7: Fully automatic computer/manual control system with fault self-diagnosis feedback program, making the operation simple and safe.
