Good Repeatability Fiber Optic Patch Cable FC-LC 2.0-10M High Return Loss
Products description
Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment. Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
Characteristics:
- Realize the activelink of optic fiber transmission
- Low insertion loss and high return loss
- Excellent repeatability and interchangeability
- High return loss;
Low insertion loss;
Good repeatability and and exchangeability;
Excellent Polished and 100% tested;
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Advantage
1. Professional manufacturer, 100% tested
2. Customers solutions in days, not weeks
3. Warmly services with careful attentions
4. Can provide your specific inquiry within 24 hours
5. Save much costs, bring more benefit for customer to expand business
Specification
| Type | SM , MM | |||
| Connector | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| SM PC | MM PC | UPC | APC | |
| Insert Loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥40dB | ≥50dB | ≥65dB | |
| Exchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Temperature Range(℃) | -40~+85 | |||

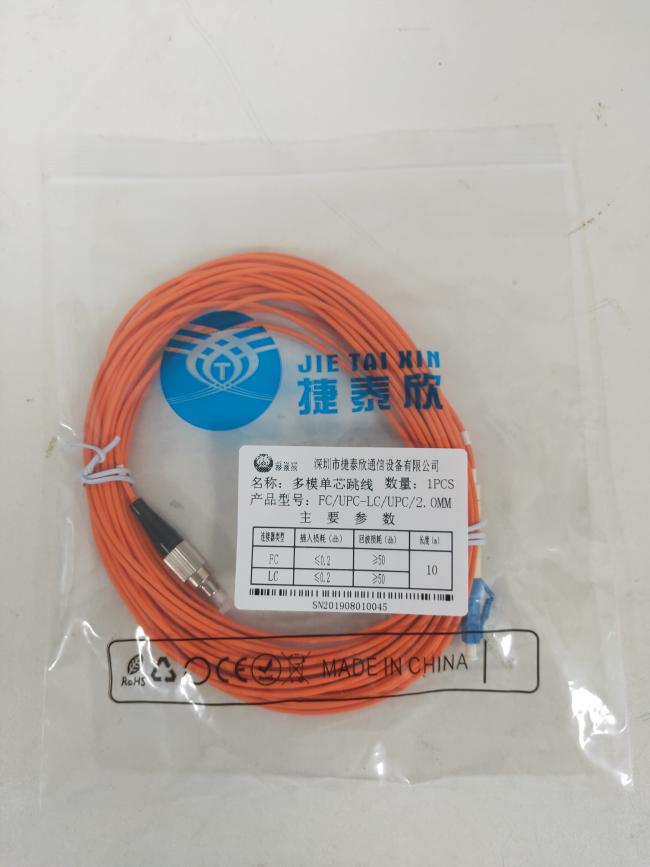

Product Show
