UPC Simplex Fiber Optic Patch Cable FC PC 2.0mm 3.0mm Single Mode
High Return Loss Fiber Optic Patch Cable FC-FC 3.0-3M Good Temperature Stability
Products description
Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
we offer include single-mode and multimode fiber patch cables of 62.5/125, 50/125, and 9/125, and fiber distribution products used in high tech networking. Trust C2G for quality fiber optic patch cables and all the products you need to run your high-speed network at peak performance.
Features:
- Compliant with international standard such as ANSI,Bellcore, TLA/EIA, IEC,also according with the industrial standards of Telecom in China
- Realize the activelink of optic fiber transmission
- Low insertion loss and high return loss
- Excellent repeatability and interchangeability
- Excellent Repeat-ability, exchange-ability, wear resistance and stability
- Good Temperature Stability
- Strong Tensile Performance
- Environmentally Friendly
Advantage
1. Professional manufacturer, 100% tested
2. Customers solutions in days, not weeks
3. Warmly services with careful attentions
4. Can provide your specific inquiry within 24 hours
5. Save much costs, bring more benefit for customer to expand business
Specification
| Type | SM , MM | |||
| Connector | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| SM PC | MM PC | UPC | APC | |
| Insert Loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥40dB | ≥50dB | ≥65dB | |
| Exchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Temperature Range(℃) | -40~+85 | |||
| END FACE TYPE | PC UPC AND APC |
| FIBER TYPE | SM(G652 G655 G657) MM(OM1-OM5) |
| CABLE DIAMETER | 0.9 2.0 3.0 OR CUSTOMIZED(SIMPLEX/ DUPLEX) |
| INSERTION LOSS | ≤0.3DB |
| RETURN LOSS | UPC SM≥50DB APC SM≥60DB PC MM≥35DB |
| REPEATABILITY | ≤0.1 |
| DURABILITY | ≤0.2DB |
| INTERCHANGEABILITY | ≤0.2DB |
| TENSILE STRENGTH | 0.9MM＞5N 2.0/3.0＞70N |
| OPERATING TEMPERATURE | -20~70 |
| STORAGE TEMPERATURE | -40~80 |
| QUTER SHEATH MATERIAL | PVC LSZH PU |
| BENDING RADIUS (STATIC/DYNAMIC) | 10D/20D |
| LENGRTH | CUSTOMIZED |

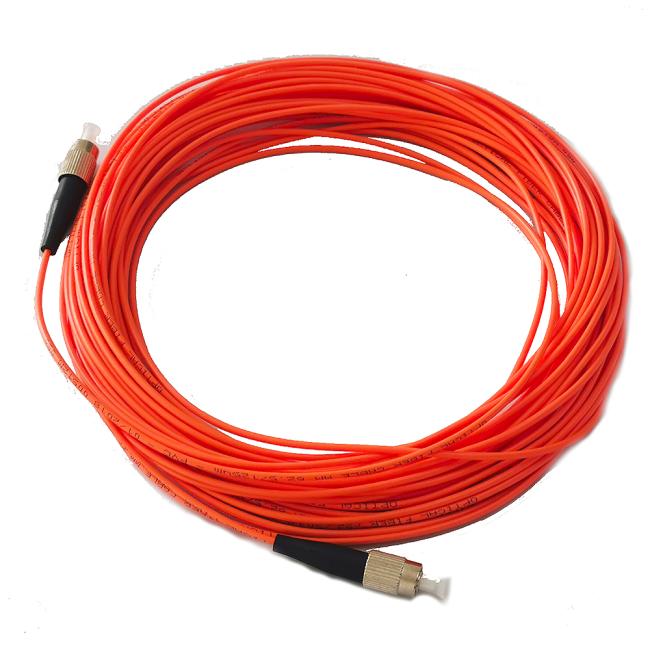

Product Show:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own desig
