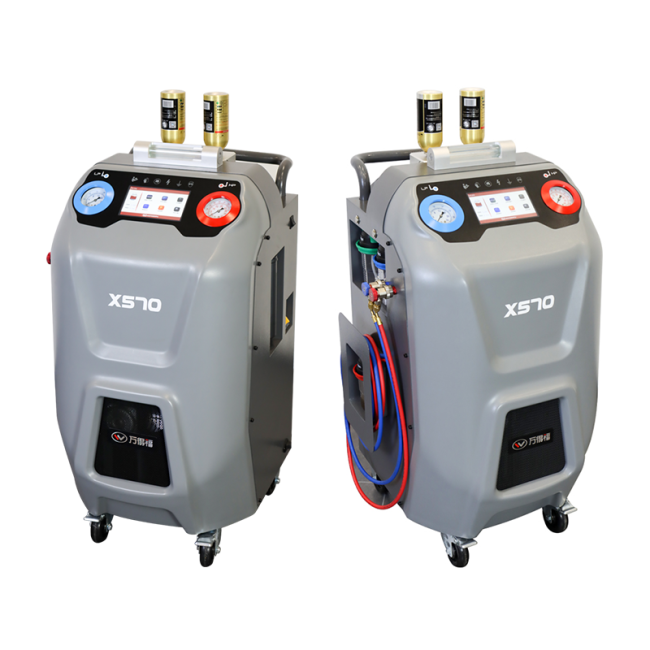

Gray X570 Portable Refrigerant Recovery Machine With Sight Glass R134a
Gray x570 Portable Refrigerant Recovery Machine with Sight Glass for r134a
1 The first domestic refrigerant machine that supports quantitative filling of small tanks, and completes the precise filling of large/small tanks of refrigerant through dual electronic scales;
2 Compatible with diesel vehicles and new energy vehicles; 3 Fully automatic cleaning, recycling, pumping Vacuum and electronic scale filling;
3 Built-in 60,000 vehicle model filling database;
4 Equipped with a liquid window, the refrigerant replacement is clearly visible;
5 Using a 7-inch industrial-grade touch screen;
6 Operation and equipment maintenance are gradually displayed to avoid misoperation;
Features:
- All in one function: 2 in 1. It is a machine combines the A/C machine and flushing machine.
- It can do recovery, vacuum, charge, recycling, and cleaning.
- The cleaning function is to use R134a refrigerant to flush the A/C system.
- Fully automatically operation;
- With two filter drier, one big oil separator
- Refrigerant pressure: (0~23KG, stops when over 23kg/cm2)
- Refrigerant working pressure: Above 3KG
- Cylinder capacity: 10KG
Parameter
| Input power | 1300W |
| Recovery speed | 300g / Min |
| Charge speed | 800g / Min |
| Filter ability | 100kg |
| Scale accuracy | 10 g |
| Cylinder capacity | 10kgs |
| Machine size | 580*610*1060mm |
| Packing size | 630*650*1180mm |
| NW./GW | 92Kg/102Kg |
Photos:
Add Refrigerant into Refrigerant Cylinder
It must add refrigerant into the refrigerant cylinder as follows when the refrigerant quantity inside the refrigerant cylinder is not enough.
a) Regard the external refrigerant source cylinder as a part of the system and connect it with the high pressure connector ( or low pressure connector ) of the equipment.
b) Evacuate the water and air from the high pressure hose(or low pressure hose)to be connected with the equipment.
c) Open the valve on the external refrigerant source cylinder and add refrigerant into the refrigerant cylinder in accordance with the recovery procedure . After the desired quantity is recovered , close the valve on the external refrigerant source cylinder and continue the recovery process till it stops automatically.
d) Close the high pressure valve ( or the low pressure valve ) on the equipment and the procedure to add refrigerant into the refrigerant cylinder is completed.
FAQ for this device:
Q: How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving payment. The specific delivery time depends on the items and the quantity of your order.
A: Standard wooden package for shipping.
Q: What is your terms of delivery?
A: EXW, DDU, FOB, CFR, CIF are available.
