Full Automatic Air Conditioning Recovery Machine Colorful LCD Screen
Full Automatic Air Conditioning Recovery Machine Colorful LCD Screen
Main Specification :
1. R134a dedicated refrigerant recovery equipment.
2. Built-in microcomputer control trigger work,stable performance,safe and reliable.
3. The connection is reliable,ensure the quality.
4. High precision electronic scale metering recycling,filling quantity of fefrigerant.
5. IRunning status real-time display,convenient observation of high pressure side, Low voltage side,the refrigerant pressure inside the tank.
6. Touch input mode,high speed miniature thermal printer.
Superiority :

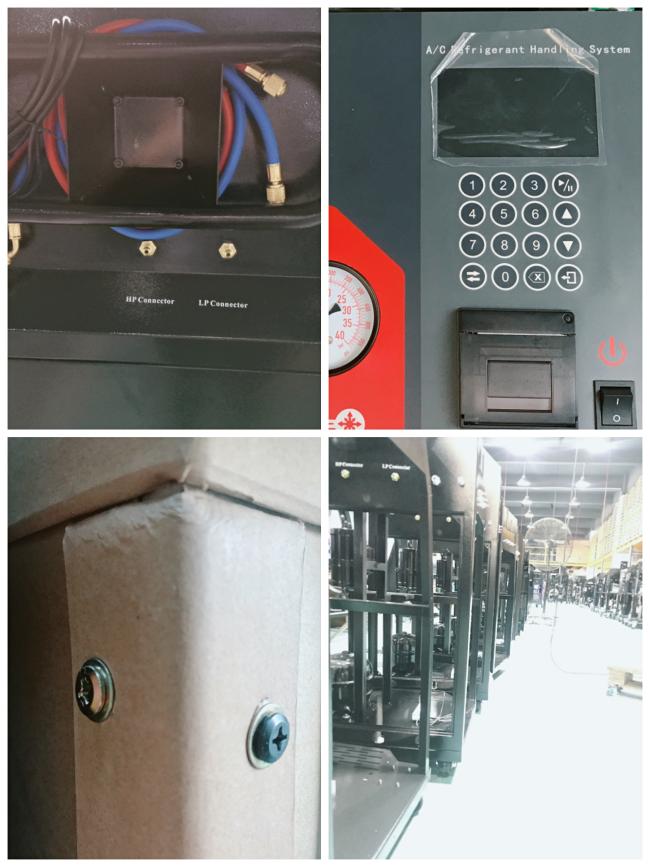

1. Big colorful LCD screen (5.0 Inches) and every operation step will be indicated on LCD. It helps the users to master the operation steps.
2. A built-in printer can print out service information.
3. Big storage cylinder can serve mini bus (capacity: 15KGS)
4. There are two safety screws to protect the scale sensor. And the way we pack
is safe and sound.
5. Database for 1300 car models in different brands.
6. A separate scale sensor for oil injection
7. Big vacuum pump at 3CFM
Mainly Technical Data Sheet :
| Model Number | X540 |
| Refrigerant Type | R134a |
| Compatiable for | Cars/Mini Buses |
| Cabinet Mode | Metal +ABS |
| Functions | Recycle |
| Recover, vacuum, charge | YES |
| Display | 5" LCD Color |
| Oil drain | Automatic |
| Oil injection | Automatic |
| Full automatic (recover+vacuum+charge) | YES |
| Recycling | YES |
| Automatic operation prompt, user no need operation training | YES |
| Database & editable database | YES |
| Built-in Printer | YES |
| Wheel brake /wheel cover | YES |
| Big gauge/gauge cover | YES |
| Fan and condensor | YES |
| Cylinder capacity (KG) | 15KGS |
| Packing Size (W*D*H)mm | 710*860*1470 |
| Net Weight (KG) | 115 |
| Gross Weight (KG) | 132 |
| Input Power | 800W |
| Recovery speed | 400g/min |
| Charge speed | 1000g/min |
| Pump | 6CFM |
| Cylinder capacity | 15Kgs |
| G.W. | 125KGS |
