Auto R134a Recovery Unit Vacuum Charge Recycling And Cleaning 2 IN 1
Auto R134a Recovery Unit Vacuum Charge Recycling And Cleaning 2 IN 1
When do you need refrigerant handling ?
After you check the air flows parts , mechanical and electrical parts of air conditioner , confirm that trouble is not caused by these parts , you need refrigerant handling .
Intelligence refrigerant recovery machine is designed and manufactured in compliance with SAE standard and it could avoid any cross contamination and it is aimed at the assurance of both the refilled refrigerant purity and the accuracy of the refrigerant refilling weight.
What is included in Refrigerant handling ?
Refrigerant Recovery , A/C system deep vacuum , leakage hunting , refrigerant charge ,system pressure check .
Features:
- All in one function: 2 in 1. It is a machine combines the A/C machine and flushing machine.
- It can do recovery, vacuum, charge, recycling, and cleaning.
- The cleaning function is to use R134a refrigerant to flush the A/C system.
- Fully automatically operation;
- With two filter drier, one big oil separator
- Refrigerant pressure: (0~23KG, stops when over 23kg/cm2)
- Refrigerant working pressure: Above 3KG
- Cylinder capacity: 10KG
| Input power | 1300W |
| Recovery speed | 300g/min |
| Charge Speed | 800g/min |
| Vacuum speed | 5.4m3/h |
| Filter ability | 100kg |
| Scale accuracy | 10g |
| Cylinder capacity | 10kgs |
| Machine size (D*W* H, mm) | 680*570*1160 |
| Packing size: (D*W* H, mm) | 720*630*1300 |
| N.w./G.w.: | 87kg/101kg |

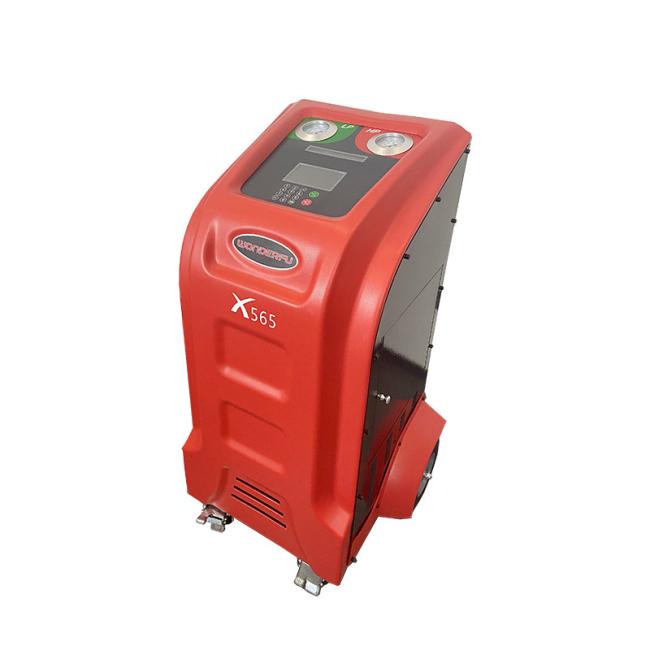

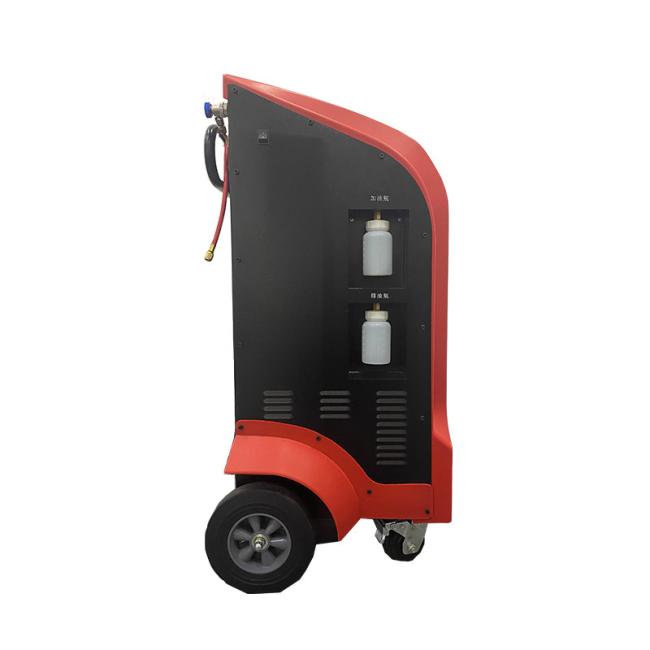

Photos:
How does a refrigerant recovery unit work?
The push-pull recovery method is used for transferring large volumes of liquid refrigerant. The recovery unit “pulls” vapor from the recovery cylinder and produces high-pressure discharge gas that “pushes” liquid out of the HVAC system and back into the recovery cylinder.
FAQ:
Q: How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving payment. The specific delivery time depends on the items and the quantity of your order.
A: Standard wooden package for shipping.
Q: What is your terms of delivery?
A: EXW, DDU, FOB, CFR, CIF are available.
