25-36 Ton Hydraulic Vibrating Plate Compactor For SK250 SY365 SY335 SH300 SK330 EC290B CX360 LG936 Excavator Attachments
Price:
Negotiable
MOQ:
1 Pieces
Delivery Time:
1-7days
Brand:
Huilian
Product Description

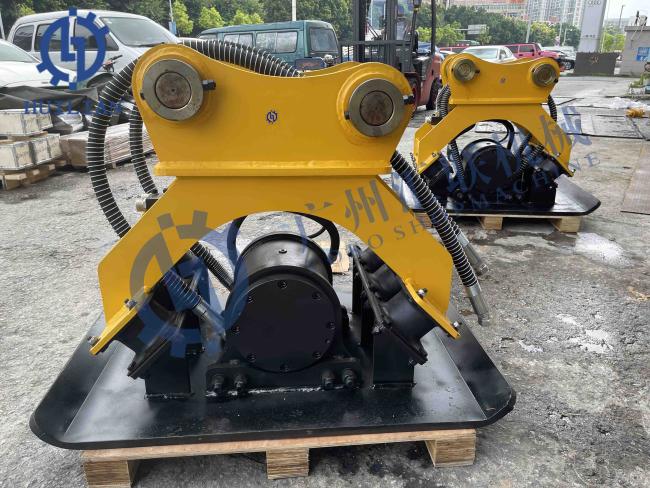

25-36 Ton Hydraulic Vibrating Plate Compactor for SK250 SY365 SY335 SH300 SK330 EC290B CX360 LG936 Excavator Attachments(we can supply all range of excavator parts: WhatsApp +8618028661021)
More information of Hydraulic Plate Compactor
| Powder of impulse(ton) | 4 | 4 | 6.5 | 15 | 15 |
| Max vibratory frequency(r/min) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Oil flow(L/min) | 45-75 | 45-75 | 85-105 | 120-170 | 120-170 |
| Pressure(kg/cm2) | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Weight(kg) | 200 | 300 | 500 | 900 | 950 |
| bottom measurement(L*W mm) | 675*450 | 900*530 | 1030*670 | 1350*870 | 1350*870 |
| Total Height(mm) | 670 | 700 | 860 | 1000 | 1050 |
| Total width(mm) | 790 | 530 | 670 | 870 | 870 |
| Suitable excavator(ton) | 2-3Tons | 5-8Tons | 12-18Tons | 18-24Tons | 25-36Tons |
Hydraulic Plate Compactor Maintenance:
| 1. Daily checkpoint: Whether there is any damage or deformation of the body, |
| hose interface leakage, damage to the pin and bushing and its replacement |
| cycle, check the bolt and nut tightening loose state, check the oil level of the |
| gear, check the gear loosening, tighten the bolt loosening. |
| 2 . Conventional checkpoint: the seals and rotating parts of the hydraulic |
| cylinder will wear out, and should be replaced in time after reaching the |
| service life. Replacement parts should be matched with the original factory. |
| 3. Check the tightening state of bolts, install new bolts, check 8 hours after use, |
| and ensure that the tightened bolts are not loose. Damaged bolts should be |
| replaced in time. Bolts should be replaced after approximately 1500 hours or |
| 12 months of use after installation. |
| 4 . When the demolition shears are in use, it is recommended to check whether |
| there is oil leakage regularly to ensure no fault. |
| 5. Every four hours (less frequent play) : fill lubriCATEEEEEEing oil, lubric |
| 6. Every half year or 1000 hours (whichever comes first) : replace the hydraulic |
| cylinder oil seal and motor oil seal once. If the oil seal is not replaced within |
| the prescribed period, there is a certain probability that other parts of the |
| product will be damaged, such as: the cylinder pulled the cylinder body, etc. |
More other Excavator Hydraulic Plate Compactor we can supply
| ESeries | |||
| E200/E200B | E240/E240B | E320B/E320C | E70/E70B |
| E120/E120B | E300 | E110/E110B | E325 |
| E330B/E330C/E330D | E325B/E325C | E330 | E322 |
| E350 | |||
| PCSeries | |||
| PC607 | PC608 | PC1201/3/5 | PC2201/2/3/5/6/7 |
| PC2001/2/3/5/6/7 | PC3001/2/3/5/6/7 | PC3607 | PC2408 |
| PC708 | PC2105/6 | PC4001/3/5/6/8 | PC300 |
| PC1001/3/5 | PC2306 | PC1107 | |
| EXZAXSeries | |||
| ZAX60 | EX601/2/3/5 | ZAX2503 | EX2202/3/5 |
| ZAX4503 | EX3001/2/3/5 | EX1202/3/5 | ZAX200 |
| ZAX3603 | ZAX3503 | EX4003/5 | EX300 |
| EX1002/3 | ZAX120 | EX100 | EX2001/2/3/5 |
| ZAX2403 | EX400 | ZAX3303 | ZAX70 |
| EX120 | ZAX1206 | EX220 | |
| SKSeries | |||
| SK2506/8 | SK3306/8 | SK4506 | SK2608 |
| SK3506/8 | SK2108 | SK4806 | SK300 |
| SK4608 | SK320 | SK400 | SK1206 |
| SK60 | SK100 | SK1203 | SK2003/5/6 |
More other excavator attachments we have
| Two-Section Arm | Brick Clamp | Mechanical Grapple | Rake | Rotary Scraping Bucket |
| Forest Scissor Shears | Rotary Steel Grapple | Root Splitting Shear | Double Cylinder Shear | Crushing Bucket |
| Log Grapple | Auger Drill | Thumb Screw | Sweeper | Stick Grab |
| Shovel Bucket | Pallet Fork | Electromagnetic Sucker | Jackdrill | Ripper |
| Cars Disassemble Shear | Screening Bucket | Tamping Hammer | Cotton Grapple | Digging Chain |
| Lawn Mower | Eagle Shear | Drum Cutter | Control Sheeper Changer | Hydraulic Breaker Hammer |
| Root Extractor | Hydraulic Pulverizer | Grass Grapple | Plate Compactor | Electromagnetic Chuck |
| Grass Grapple | Clamshell Bucket | Two Slide Arm | Rock Saw | Demolition Shear |
| Orange Peel Grapple | Pile Hammer | Bale Breaker | Quick Hitch Coupler | Electric Holding Grapple |
