High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials
High Quality Flat Belt Conveyor Machine For Sand Gravel Bulk Materials
Product Description
High Quality Flat Belt Conveyor Machine For Sand Gravel Bulk Materials is a kind of constantly conveying machine which is widely used in industrial field. It’s suitable for conveying of various bulk material or packed materials, like particle, powder of 0.5~2.5t/m³ density, also to goods of pieces or packages. It can be used with other conveying machine. It has a lot of advantages of large throughput, low operating cost, wide range of application. According to the support structure, there are fixed type and mobile type. According to the conveying belt, there are rubber belt, plastic belt and steel belt. Its structure is simple, very safe, easy maintenance, can be widely used in flour factory, feed processing plant, oil factory, starch factory, mines, cement, construction, chemical, glass and other industries.
Main Parameters
| Belt width(mm) | Belt speed(m/s) | Conveying capacity(m³/h) | Motor Power(kw) | |
| Groove type | Flat type | |||
| 500 | 0.8-2.5 | 78-232 | 41-125 | 1.5-30 |
| 650 | 0.8-2.5 | 131-391 | 67-211 | 1.5-40 |
| 800 | 1.0-3.15 | 278-824 | 118-350 | 1.5-75 |
| 1000 | 1.0-3.15 | 435-1233 | 230-546 | 3-100 |
| 1200 | 1.0-4.0 | 655-2202 | 345-821 | 4-185 |
| 1400 | 1.0-4.0 | 891-2996 | 469-1117 | 4-185 |
Main Features
1. Belt has kinds of materials.
2. Stepless variable speed.
3. Big throughput and low operating cost.
4. Widely range of application.
Application
Belt conveyor is widely used for coal, chemical industry, building materials, metallurgy, electric power, light industry grain, port, shipping, etc. Specific gravity of bulk materials is 0.5-2.5 t/m³ can be conveyed in the working environment where the temperature is during -15 degree to 140 degree centigrade.
Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

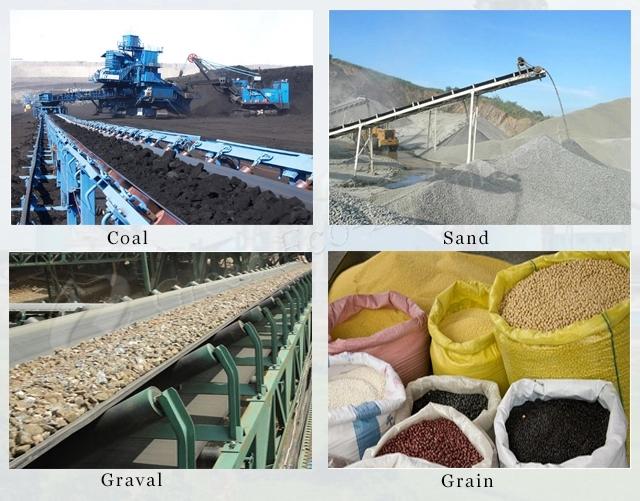

Field Usage
