800mm 600kgs 0.55kw Weld Overlay Hardfacing Machine
Weld Overlay Hardfacing Machine
1. Product Instruction
JH-350R application covers cement, electric power, steel, mining, petrochemical and other industries. It is hard surface repair for wear-resistant linings of large vertical mills, coal mills, continuous casting rolls, crushers, roller presses and other wear-resistant equipment.
It has the function of stable and continuous welding ability.
Stable speed adjustment, rotation and displacement function, convenient for welding at different angles
The machine body is made of aluminum alloy, and the speed control is controlled by OPG high precision stepping motor, so as to ensure that there is no superposition error when the horizontal movement is controlled.
Welding gun continuous welding straight welding gun

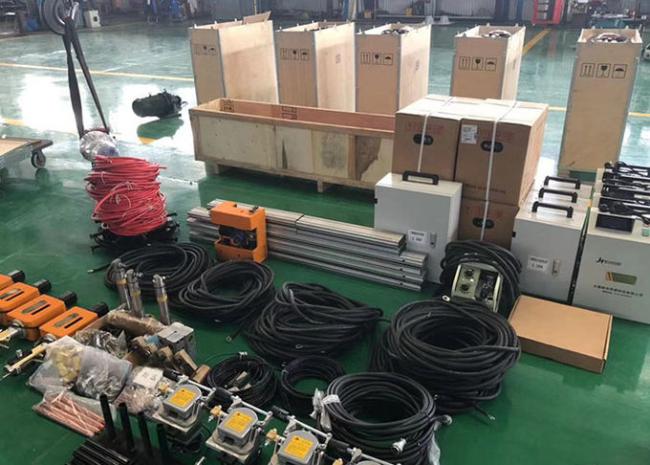

System spare parts conductive rod, conductive nozzle, wire feeding wheel, etc.
Provide welding training, welding instruction, equipment training, equipment installation instruction
2. Specification
| Model | JH-350R |
| Max loading KGs | 600 |
| Rated eccentricity mm | 150 |
| Rated center of gravity mm | 250 |
| Worktable diameter mm | Φ800 |
| Tilt angle | MAX 120° |
| Rotation speed rpm | 0.1—1 |
| Tilt speed rpm | 0.8 |
| Rotation motor power KW | 0.37 |
| Tilt motor power KW | 0.55 |
| Max rotation diameter of work-piece in 90° mm | 1500 |
| Earthing Amperes A | 1000 |
| Main frame length mm | 1200 |
| Main frame height mm | 900 |
| Main frame width mm | 800 |
